SURFACE MOUNT NOSINGS
STNR: 2'' Surface Mount
Stair Nosing
STNR: 2'' Abrasive Surface Mount Stair Nosing
The low-profile STNR 2.0” wide abrasive stair nosing is designed with a replaceable 1″ photoluminescent marking or sand-grit insert strip to meet slip-resistance and contrasting stripe requirements. Designed for surface-mount applications, making it ideal for both new stair installations and retrofit projects. Suitable for both interior and exterior environments.
Engineered for secure attachment, the STNR nosing can be installed using the included manufacturer-recommended adhesive and/or mechanical fasteners, ensuring reliable performance on virtually any surface finish.

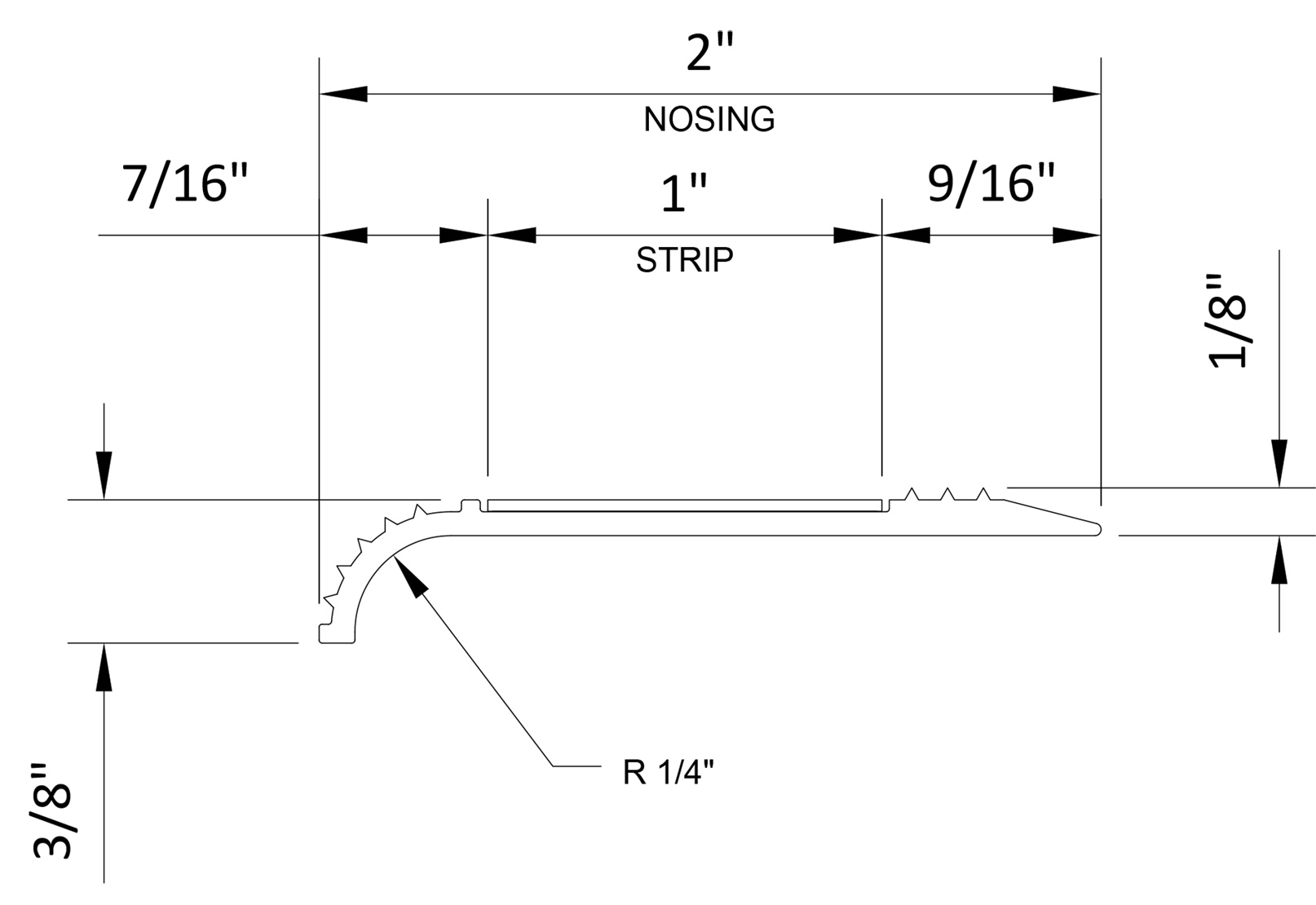

Constructed from durable aluminum. The nosing fits existing stair treads with a bull-nose radius between 3/16” and 1/2”. Its slim 1/8” height and tapered edge creates a smooth floor transition that minimizes tripping hazards. Multiple colors, finishes and options are available to match project aesthetics or meet specific code requirements.
Code Compliance:
- Complies with IBC, IFC, NFPA, ASTM, OSHA, ADA and California Title 24 contrasting stripe requirements.
- UL Approved.
QUICK DOWNLOAD
OPTIONS
1'' INSERT STRIP

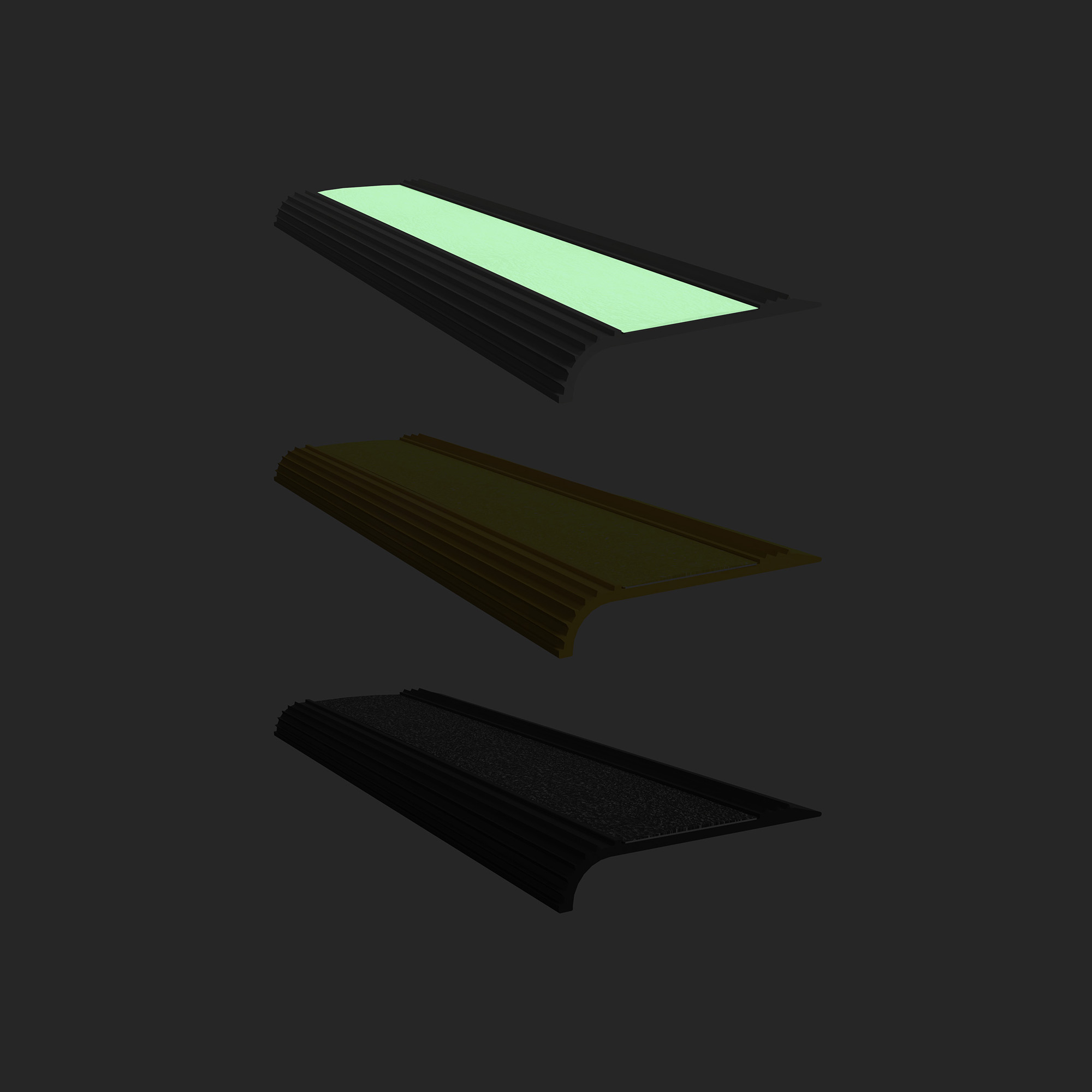

Glow and Non-Glow Options
Photo-Glo® STNF
Premium Polymer Resin
Photo-Glo® S9203
Budget Acrylic Vinyl
Traction Yellow
Anti-Slip Tape
Traction Black
Anti-Slip Tape

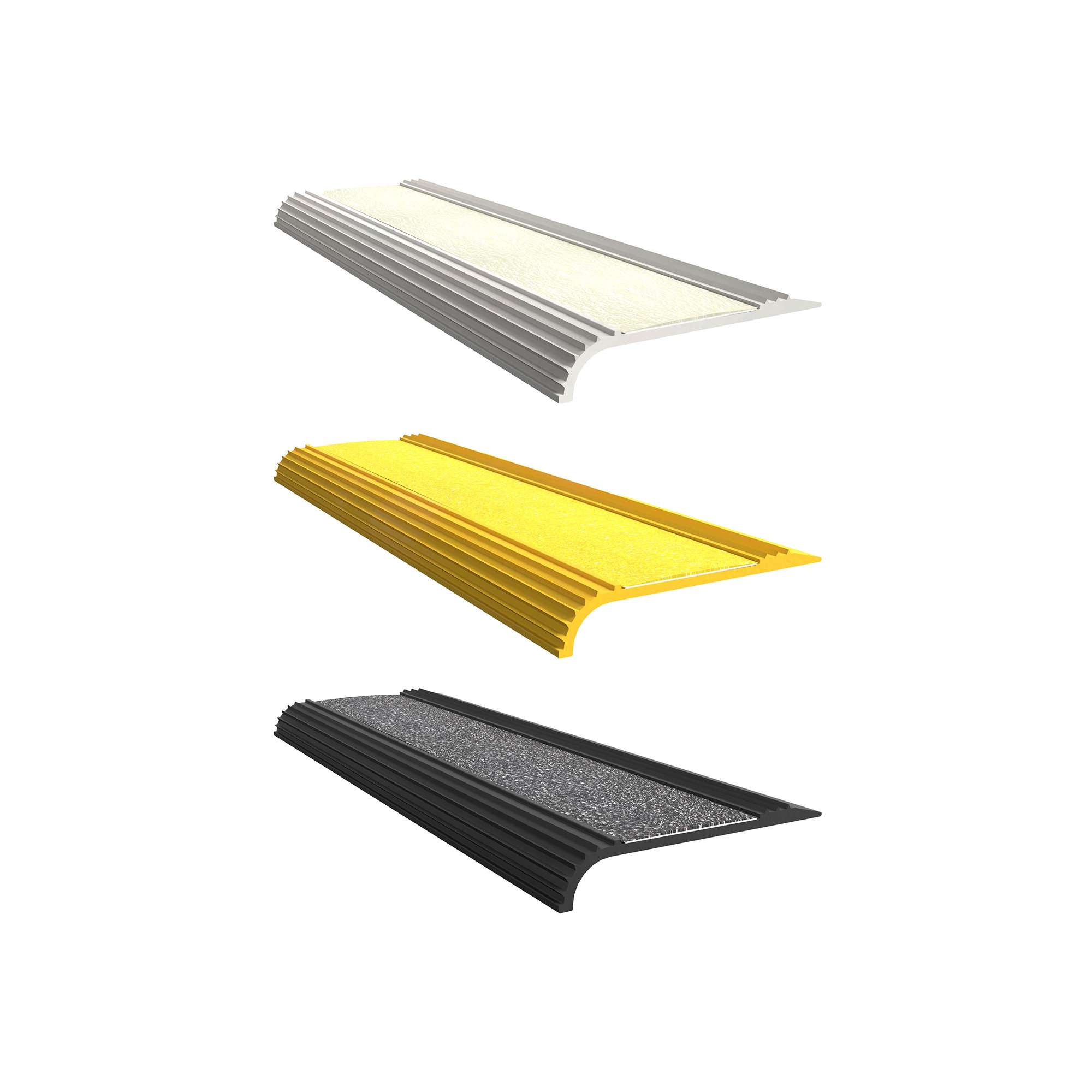

EXTRUDED ALUMINIUM
Finish Options
Clear Anodize
Standard
Yellow Powder Coat
Custom
Black Powder Coat
Custom
Mill Finish
Custom
INSTALL ATTACHMENT
- Liquid Adhesive (Included)
- Mechanical Fastener (Stainless Modified Truss Head)
* Custom options may require additional lead time
MODELS
 |
PRODUCT | OPTION 1 | OPTION 2 | INSTALL | SIZE |
|---|---|---|---|---|---|
| Product Image | Model # | Extruded Aluminum | 1” Insert Strip | Attachment | Max Length |
| Standard - Clear Anodize | |||||
 |
STNR | Clear Anodize | Photo-Glo STNF | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-9203 | Clear Anodize | Photo-Glo S9203 | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-TY | Clear Anodize | Traction Yellow | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-TB | Clear Anodize | Traction Black | Liquid Adhesive (Included) | 12’-0” Long |
| Custom - Yellow Powder Coat | |||||
 |
STNR-Y | Yellow Powder Coat | Photo-Glo STNF | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-Y9203 | Yellow Powder Coat | Photo-Glo S9203 | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-YTY | Yellow Powder Coat | Traction Yellow | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-YTB | Yellow Powder Coat | Traction Black | Liquid Adhesive (Included) | 12’-0” Long |
| Custom - Black Powder Coat | |||||
|
STNR-B | Black Powder Coat | Photo-Glo STNF | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-B9203 | Black Powder Coat | Photo-Glo S9203 | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-BTY | Black Powder Coat | Traction Yellow | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-BTB | Black Powder Coat | Traction Black | Liquid Adhesive (Included) | 12’-0” Long |
| Custom - Mill Finish | |||||
|
STNR-MF | Mill Finish | Photo-Glo STNF | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-MF9203 | Mill Finish | Photo-Glo S9203 | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-MFTY | Mill Finish | Traction Yellow | Liquid Adhesive (Included) | 12’-0” Long |
|
STNR-MFTB | Mill Finish | Traction Black | Liquid Adhesive (Included) | 12’-0” Long |
* Custom options may require additional lead time
TECHNICAL INFORMATION
Application:
Interior or exterior use. Existing steps and edges.
Surfaces:
Metal, diamond plate, concrete, tile, stone, wood, carpet, rubber, composites
Transition:
Surface shall be flat for level or flush transition.
Code Required Placement:
- Leading edge of glow stripe shall be placed 1/2” max from leading edge of step.
- Glow or contrasting stripe must extend full width of step
- Terminate nosing/stripe with 1/8“ max gap from each end of tread.
Max Length:
12’-0” Long
Supply:
Cut to specified length, fully assembled to selected options. Custom options may require additional lead time.
1″ Insert Strips:
Photo-Glo® STNF, Photo-Glo® S9203, Traction Yellow, Traction Black
Extruded Aluminum:
Alloy 6063-T5. Clear Anodized, Yellow Powder Coat, Black Powder Coat, Mill Finish
Install Attachment:
- Fits bull-nose radius from 3/16” to 1/2”.
- Mfg. Recommended Liquid Adhesive (Included)
- Mfg. Recommended Mechanical Fastener (Excluded)
- #8 Self Tap Stainless Modified Truss Head Screw
- One 4″ from the end, 16″ max on center
Warranty:
Up to 25 Years. Contact Safe-T-Nose for special product warranty.
Life-cycle:
Up to 30 years with proper install and maintenance.
Compliance:
ASTM E303 / ASTM E2072 / UL 1994 / UL 410 / IBC / IFC / NFPA 101 / NFPA 170 / OSHA / ADA
APPLICATIONS

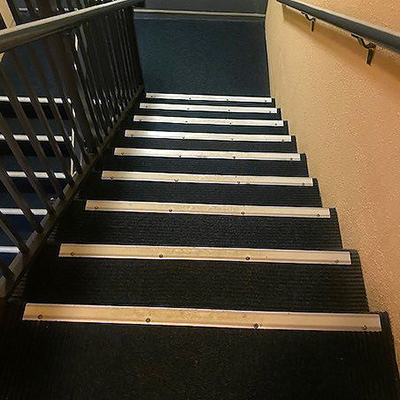

Carpet Stair Nosings

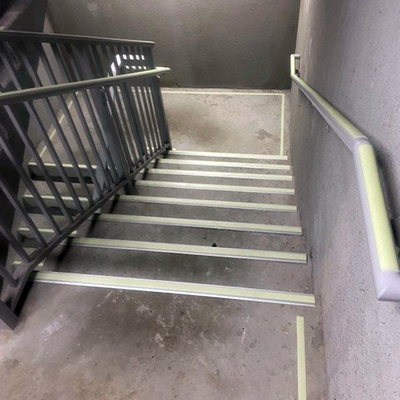

Cast-In-Place Stair Nosings

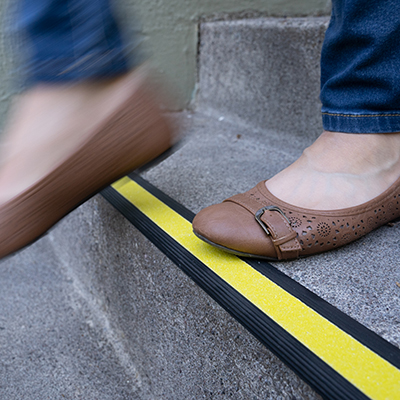

Cement Stair Nosings

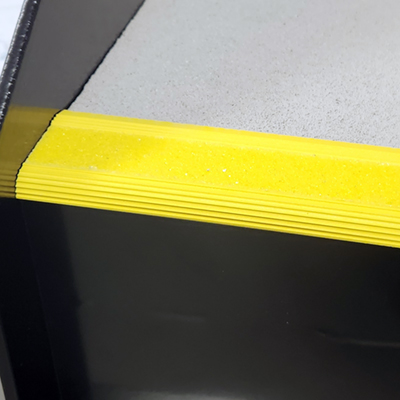

Concrete Pan Fill Stair Nosings

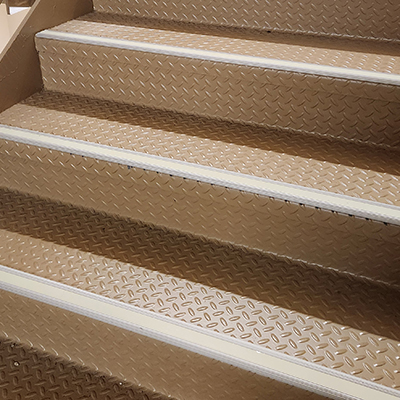

Diamond Checker Plate Stair Nosings

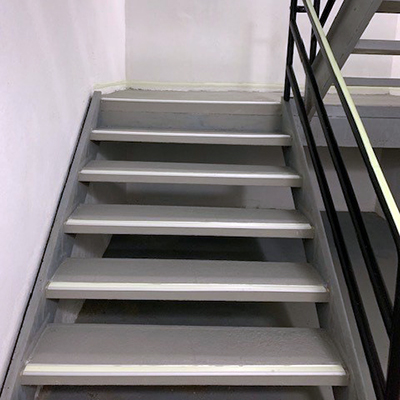

Tile, Stone, Grating, Metal, Aluminum, Precast, Composite or Wood Tread Nosings
FREQUENTLY ASKED QUESTIONS
What is the purpose of surface mount or retrofit stair nosings?
Surface mount and retrofit stair nosings are designed to improve stair safety by enhancing visibility and slip resistance on existing stair treads, steps, and edges. These stair nosings provide a fast, cost-effective safety upgrade without the need for full stair replacement.
By increasing traction and defining the stair edge, stair nosings reduce the risk of slips and falls—especially in high-traffic or low-light environments. In normal, low-light, or no-light conditions, retrofit stair nosings offer vital visual cues for safe navigation. In emergencies, the added visibility helps occupants exit quickly and enables first responders to enter safely.
Our surface mount stair nosings are available in a variety of finishes and styles to meet both functional and aesthetic needs. Options include ribbed textures, abrasive surfaces, and glow-in-the-dark or contrasting color strips to comply with code requirements and personal preferences.
When should I use surface mount or retrofit stair nosings?
Surface mount or retrofit stair nosings are ideal for enhancing stair safety and code compliance in a wide range of scenarios, especially when working with existing stairs.
You should use surface mount stair nosings when:
- Your stair treads, steps, or edges are already in place and need a safety upgrade.
- Stairs present a slip, trip, or fall hazard due to worn or unsafe surfaces.
- Building codes require the addition of contrasting color stripes, slip-resistant surfaces, or photoluminescent (glow-in-the-dark) markings for emergency egress paths.
- New construction projects need a simpler, cost-effective stair nosing solution that avoids complex installations.
- Future maintenance and replacement is a consideration—retrofit stair nosings are easy to remove and replace without disturbing the original stair structure.
Surface mount stair nosings offer a flexible, efficient, and code-compliant way to increase visibility, durability, and safety on virtually any stair surface.
How do surface mount or retrofit stair nosings attach?
Surface mount and retrofit stair nosings are designed for fast, secure installation on virtually any existing stair tread, step, or edge—regardless of the material or surface condition.
These stair nosings attach directly to the flat leading edge of stairs using commercial-grade adhesive, mechanical fasteners, or a combination of both, depending on project needs and site conditions.
Each nosing features a low-profile design with a tapered edge, allowing for a smooth, seamless transition to the walking surface—helping to reduce tripping hazards and improve pedestrian safety.
The standard ribbed bullnose profile not only enhances slip resistance but also complies with international building code requirements. This design fits a wide variety of existing stairs and edges, providing a universal and code-compliant solution for stair safety retrofits or new installations.
