POUR-IN-PLACE NOSINGS
STNP: 2” ABRASIVE
POUR-IN-PLACE STAIR
STNP: 2” ABRASIVE
POUR-IN-PLACE STAIR
The low-profile STNP 2.0” wide abrasive stair nosing is designed with a replaceable 1“ photoluminescent marking or sand-grit insert strip to meet slip-resistance and contrasting stripe requirements. The PVC isolator protects against galvanic corrosion between the aluminum nose and concrete. The aluminum nose is replaceable. The nosing includes a patented protective cover to prevent damage during installation and through construction. Suitable for both interior and exterior environments.
Designed for installation just before the concrete pour. The stair nosing clips on to the 14-10ga x 3/4” metal pan nose holding its position during the concrete pour. Creates a bull nose radius of 5/16”.
Constructed from durable aluminum adhered to the PVC isolator using high bond 3M VHB adhesive. Its slim profile and square back edge creates a flush transition from nose to tread. Multiple colors, finishes and options are available to match project aesthetics or meet specific code requirements.
Code Compliance:
- Complies with IBC, IFC, NFPA, ASTM, OSHA, ADA and California Title 24 contrasting stripe requirements.
- UL Approved.
QUICK DOWNLOAD
OPTIONS
PVC ISOLATOR
Yellow
Standard
Grey
Standard
Black
Standard
EXTRUDED ALUMINUM
Finish Options
Clear Anodize
Standard
Yellow Powder Coat
Custom
Black Powder Coat
Custom
Mill Finish
Custom
1” INSERT STRIP
Glow and Non-Glow Options
Photo-Glo® STNF
Premium Polymer Resin
Photo-Glo® S9203
Budget Acrylic Viny
Traction Yellow
Anti-Slip Tape
Traction Black
Anti-Slip Tape
INSTALL ATTACHMENT
Clips on 14-10ga x 3/4” metal pan nose before pour.
PROTECTION COVER
Included, shop installed. Tear off after concrete cures, near end of construction.
* Custom options may require additional lead time
MODELS
 |
PRODUCT | OPTION 1 | OPTION 2 | OPTION 3 | INSTALL | PROTECTION | SIZE |
|---|---|---|---|---|---|---|---|
| Product Image | Model # | PVC Isolator | Extruded Aluminum | 1” Insert Strip | Attachment | Construction Cover | Max Length |
| Standard - Yellow PVC - Clear Anodize | |||||||
 |
STNP-Y | Yellow | Clear Anodize | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

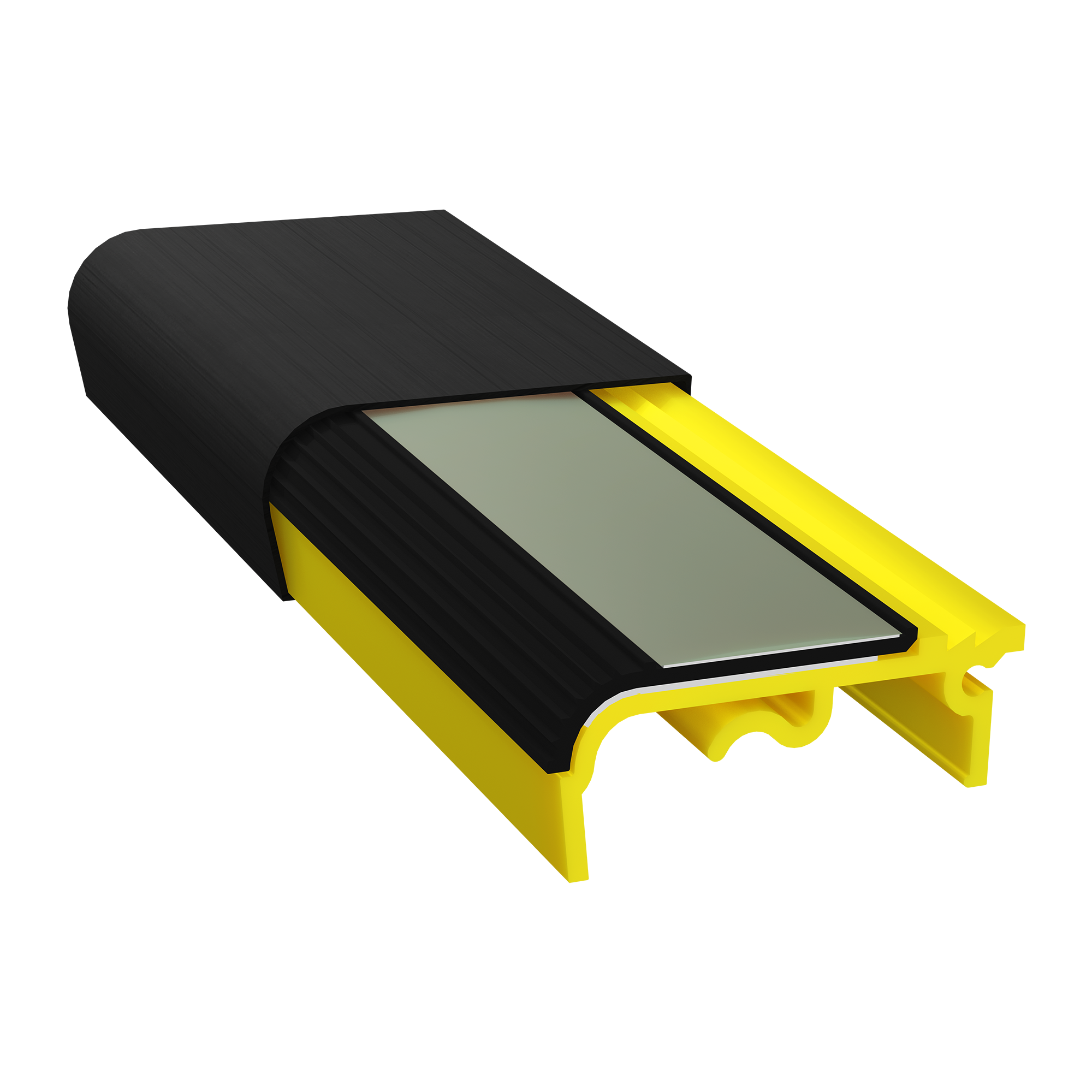

STNP-Y9203 | Yellow | Clear Anodize | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-YTY | Yellow | Clear Anodize | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

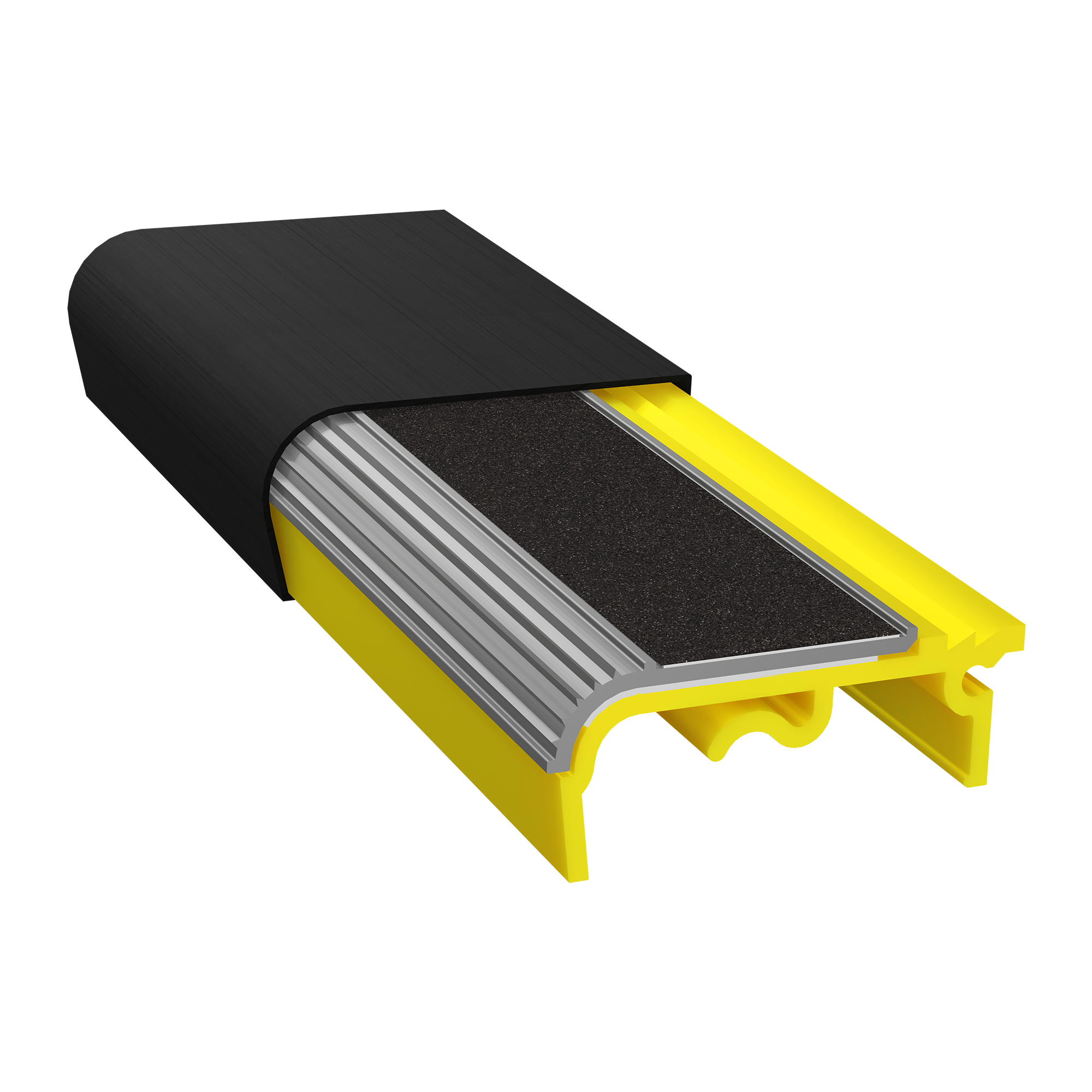

STNP-YTB | Yellow | Clear Anodize | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Yellow PVC - Yellow Powder Coat | |||||||
|

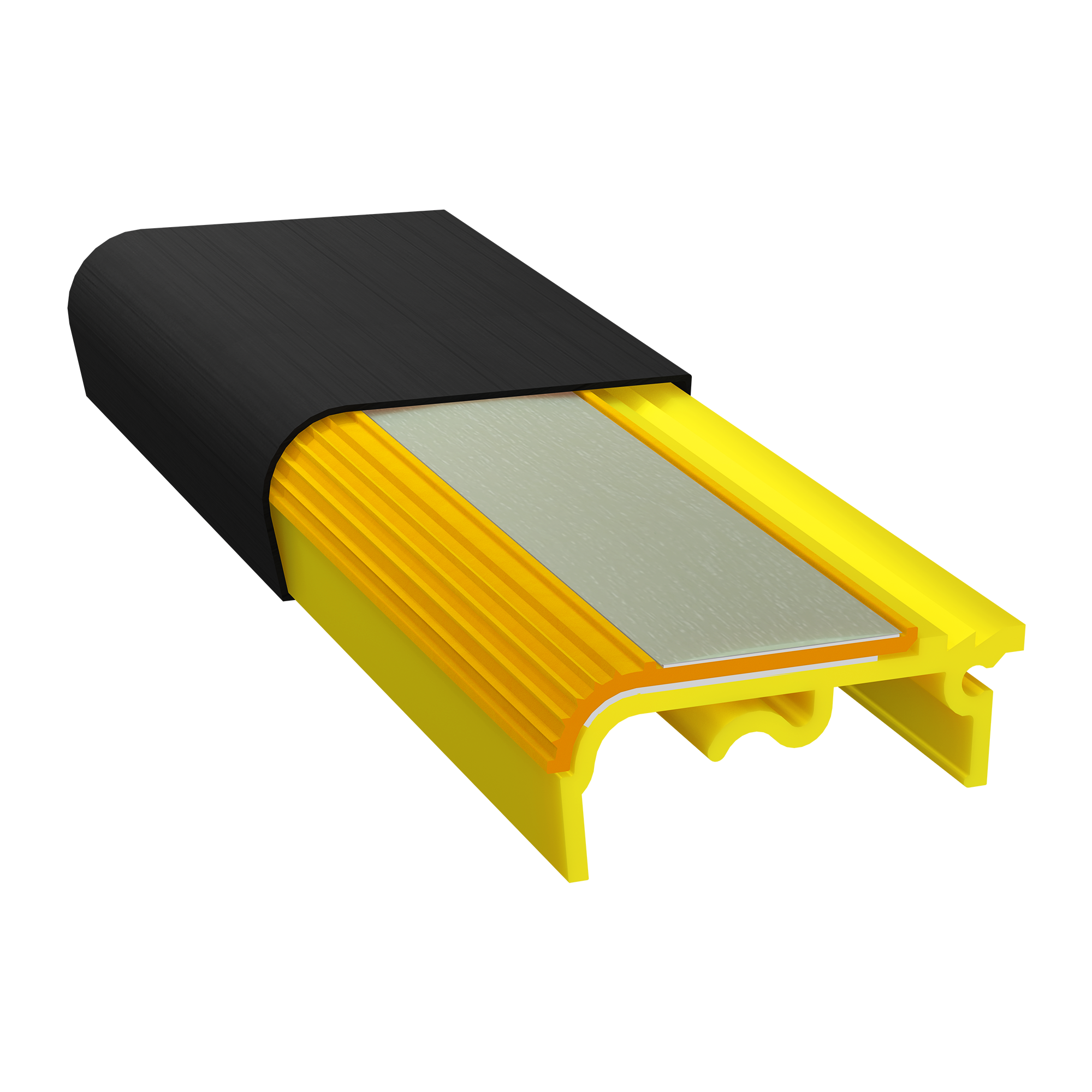

STNP-YY | Yellow | Yellow Powder Coat | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-YY9203 | Yellow | Yellow Powder Coat | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

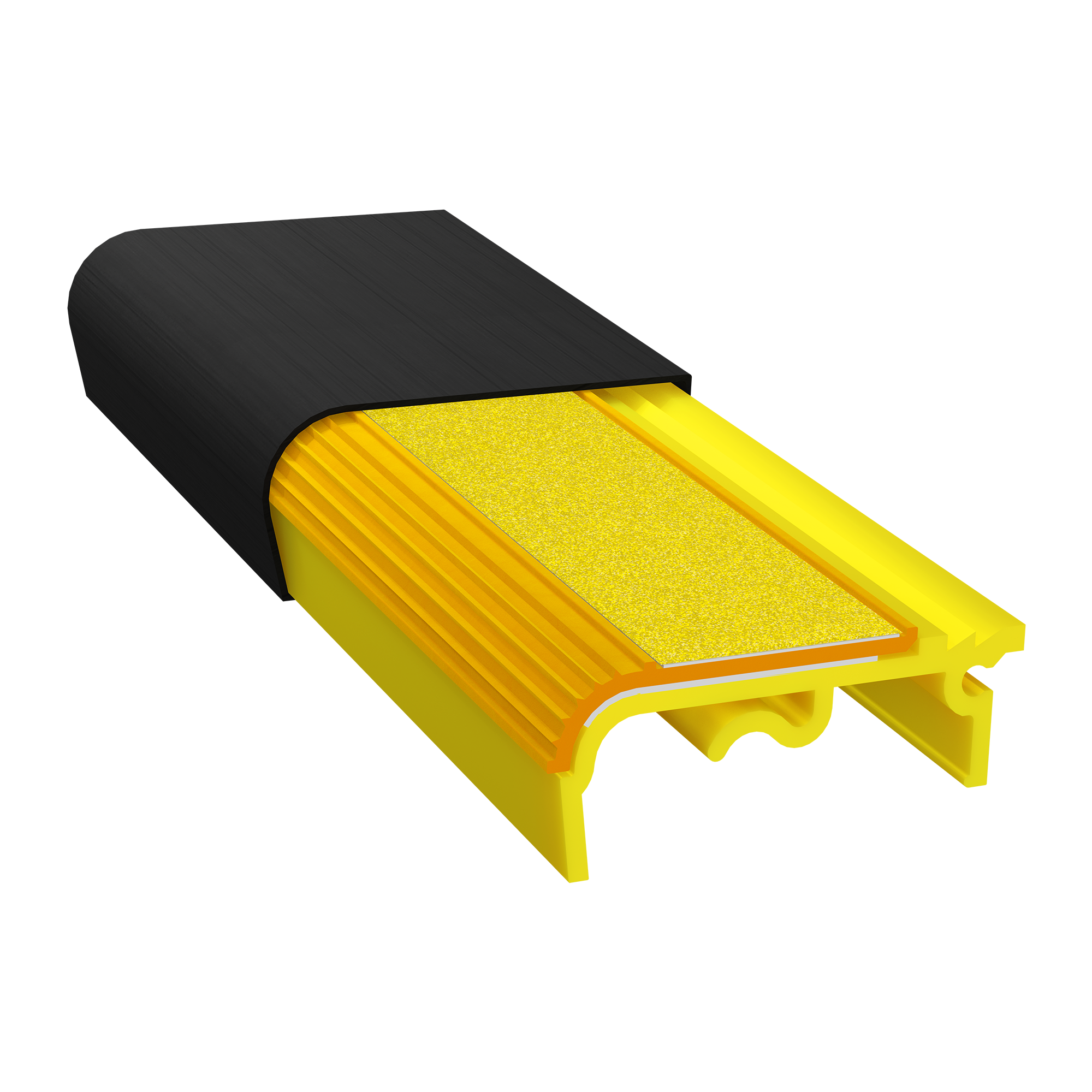

STNP-YYTY | Yellow | Yellow Powder Coat | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

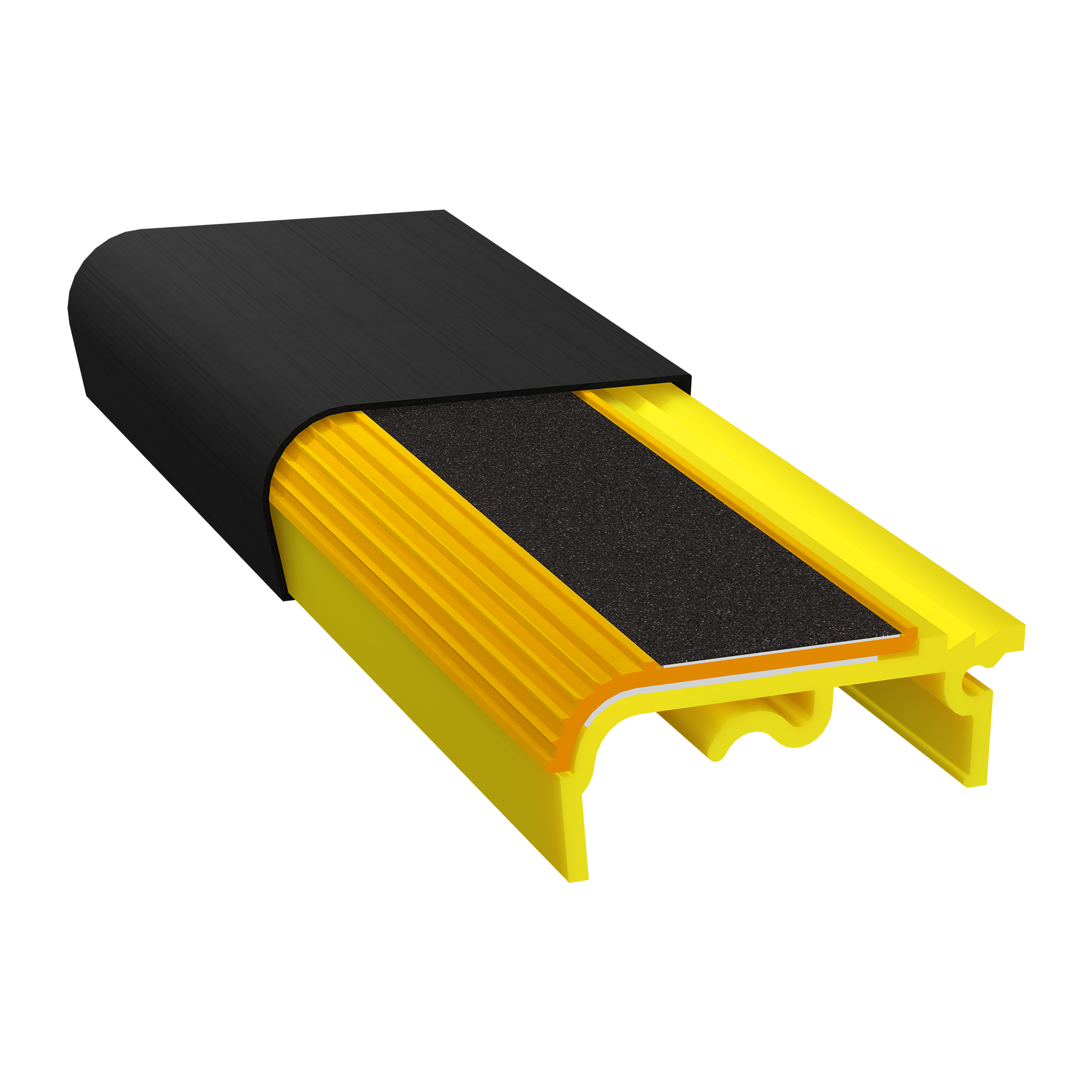

STNP-YYTB | Yellow | Yellow Powder Coat | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Yellow PVC - Black Powder Coat | |||||||
|
STNP-YB | Yellow | Black Powder Coat | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-YB9203 | Yellow | Black Powder Coat | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

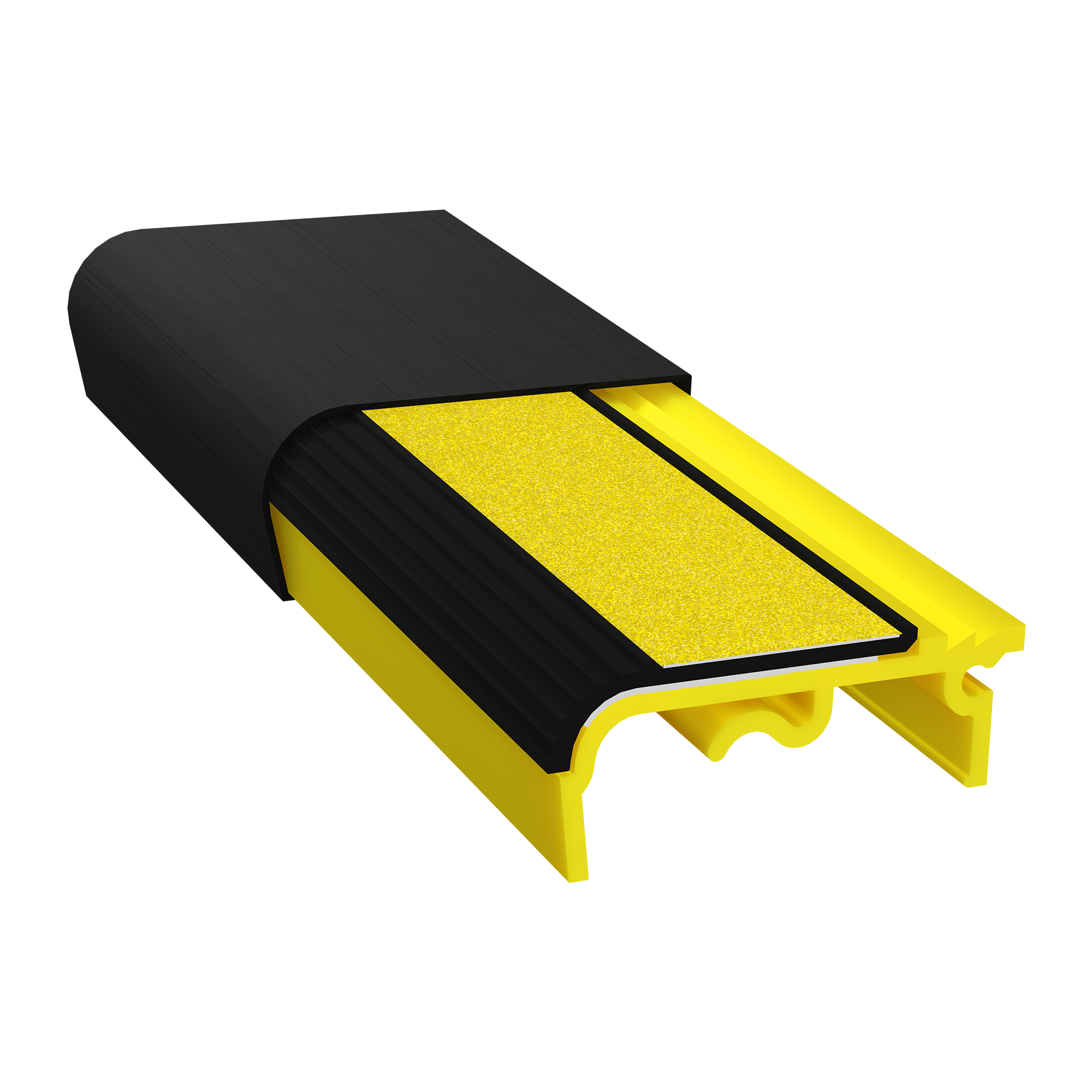

STNP-YBTY | Yellow | Black Powder Coat | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

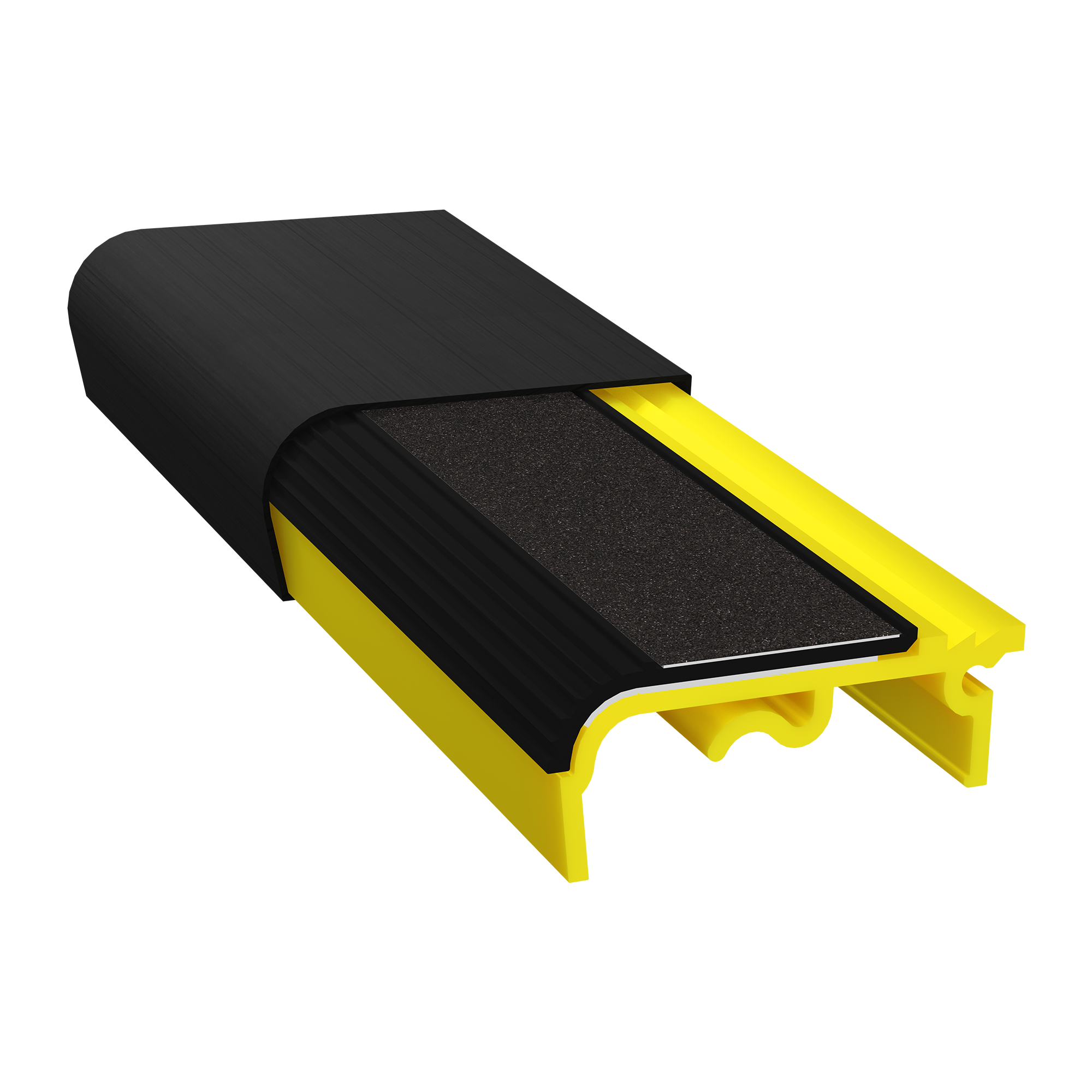

STNP-YBTB | Yellow | Black Powder Coat | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Yellow PVC - Mill Finish | |||||||
|
STNP-YMF | Yellow | Mill Finish | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

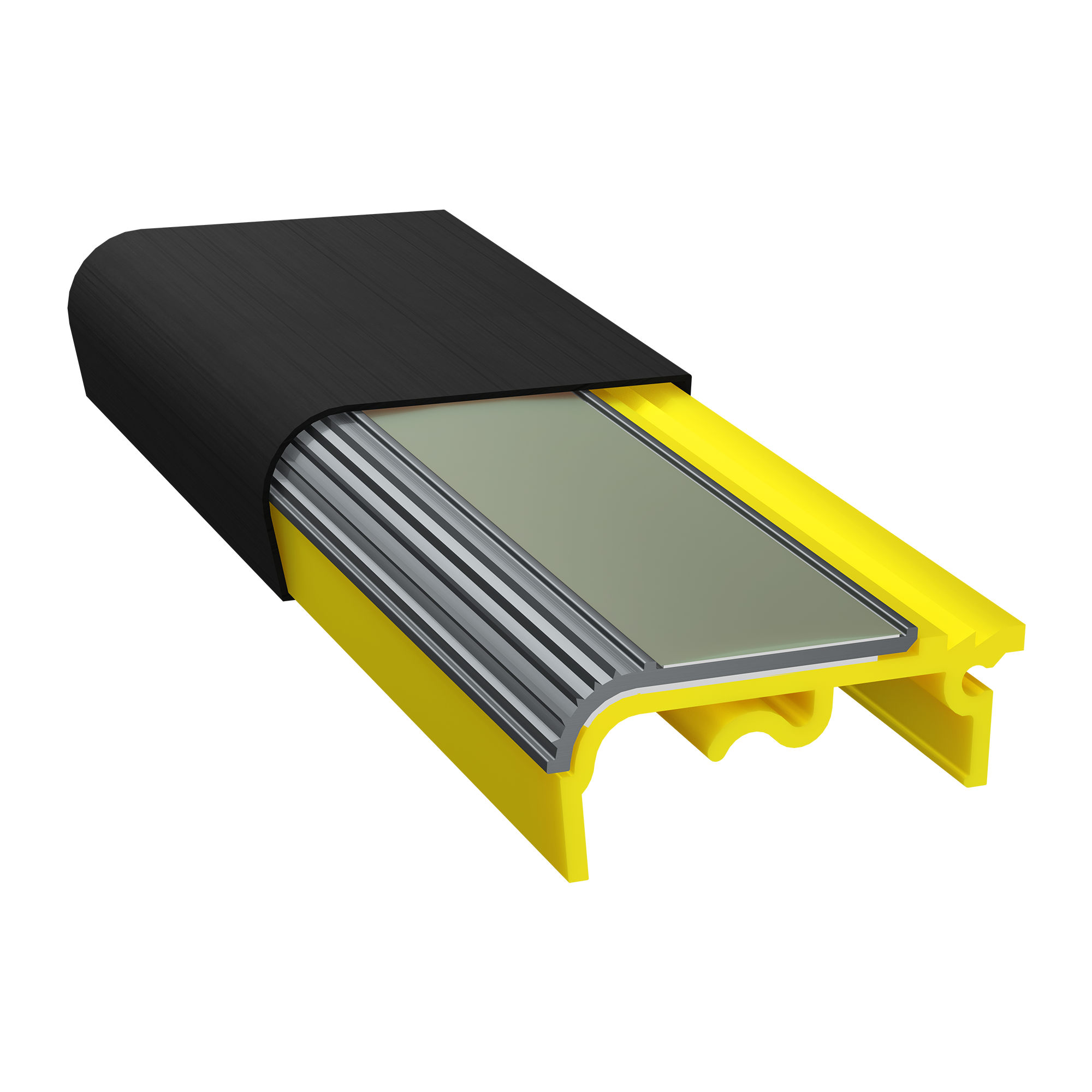

STNP-YMF9203 | Yellow | Mill Finish | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

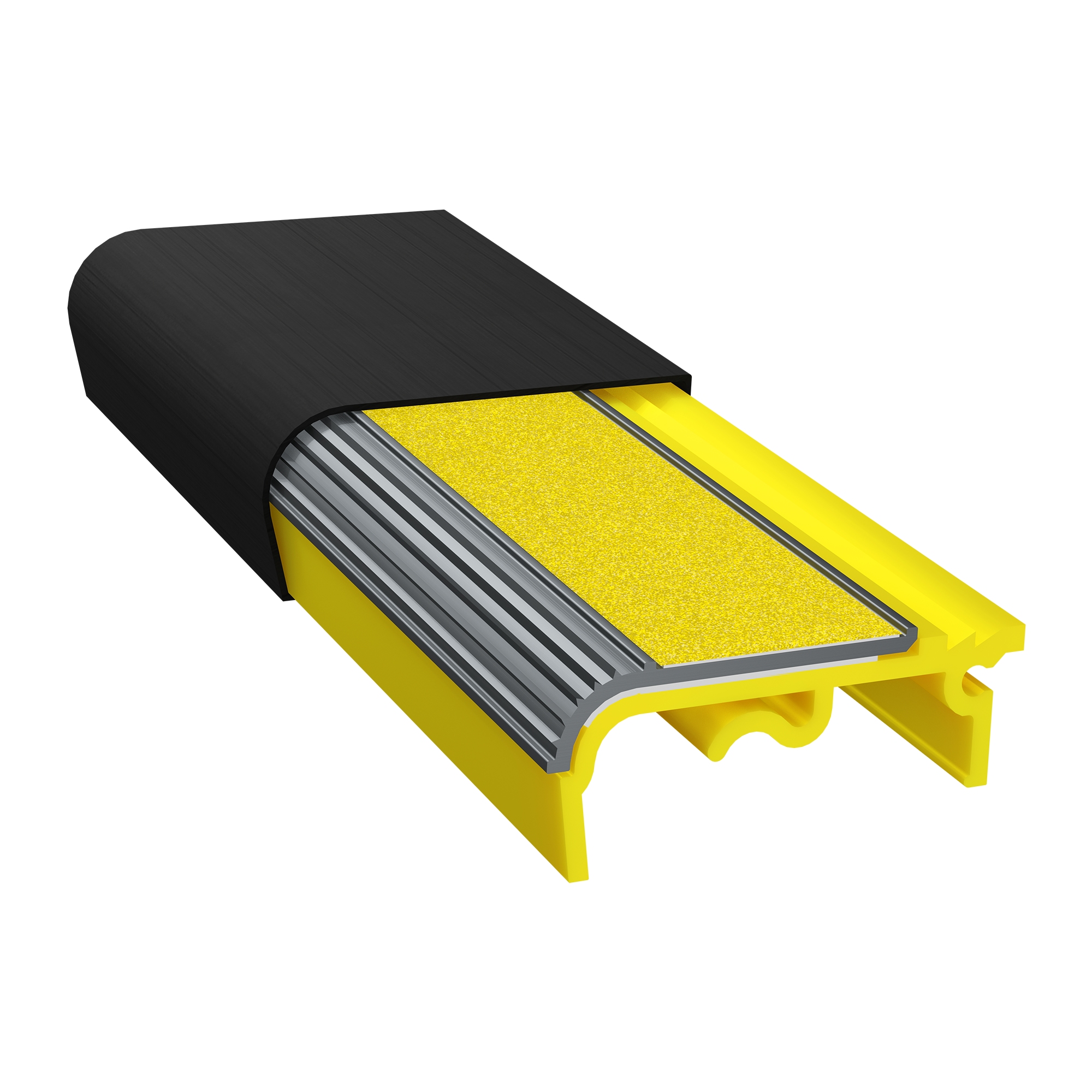

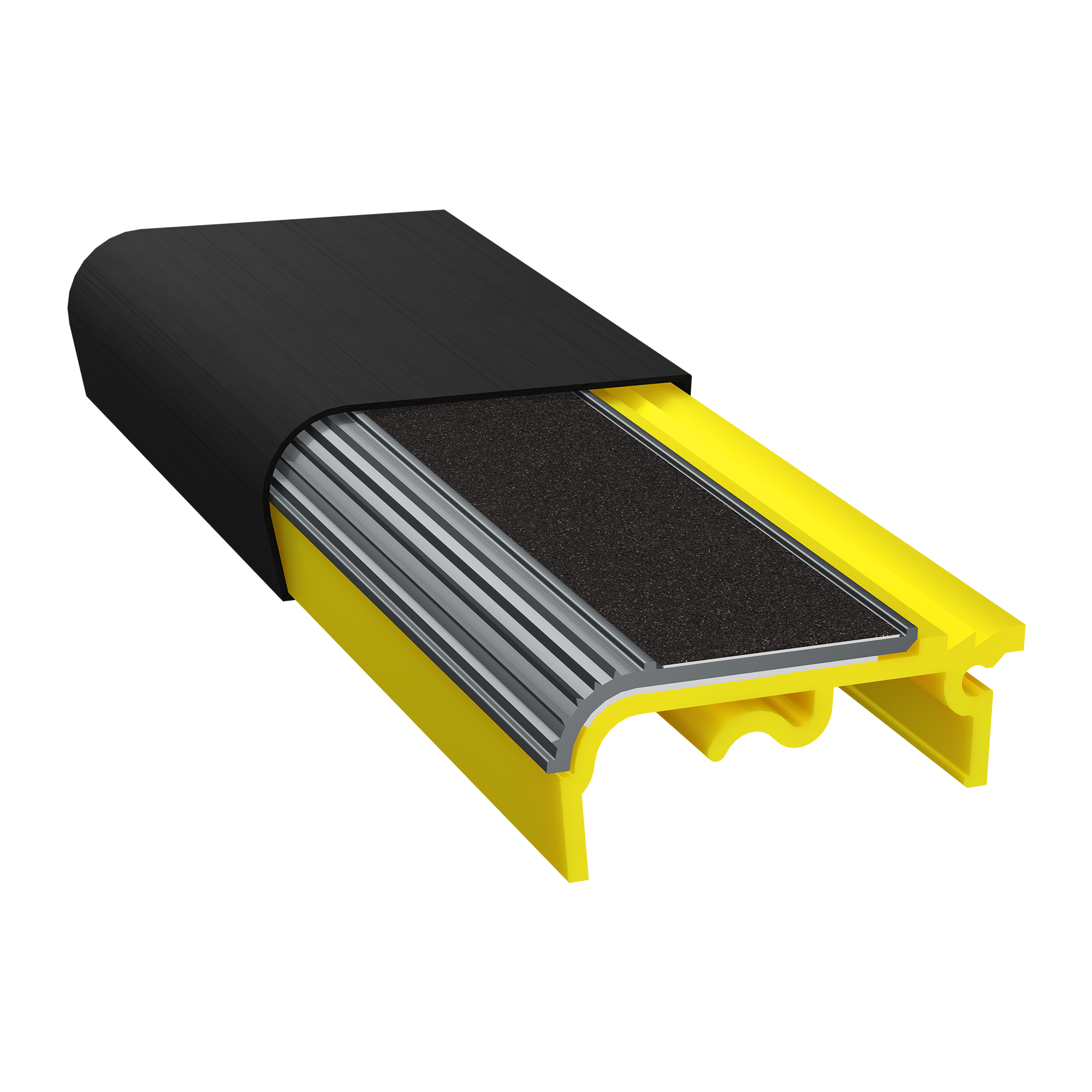

STNP-YMFTY | Yellow | Mill Finish | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-YMFTB | Yellow | Mill Finish | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Standard - Grey PVC - Clear Anodize | |||||||
|

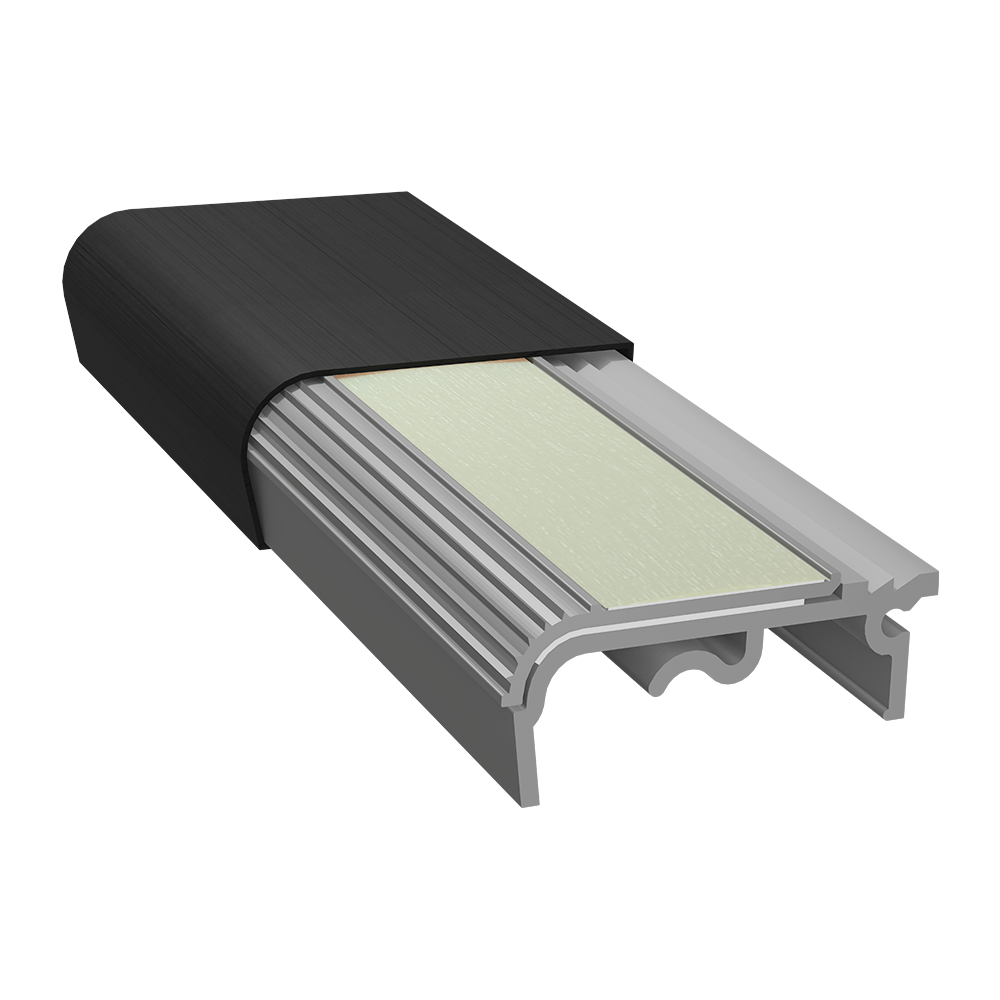

STNP-G | Grey | Clear Anodize | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-G9203 | Grey | Clear Anodize | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-GTY | Grey | Clear Anodize | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

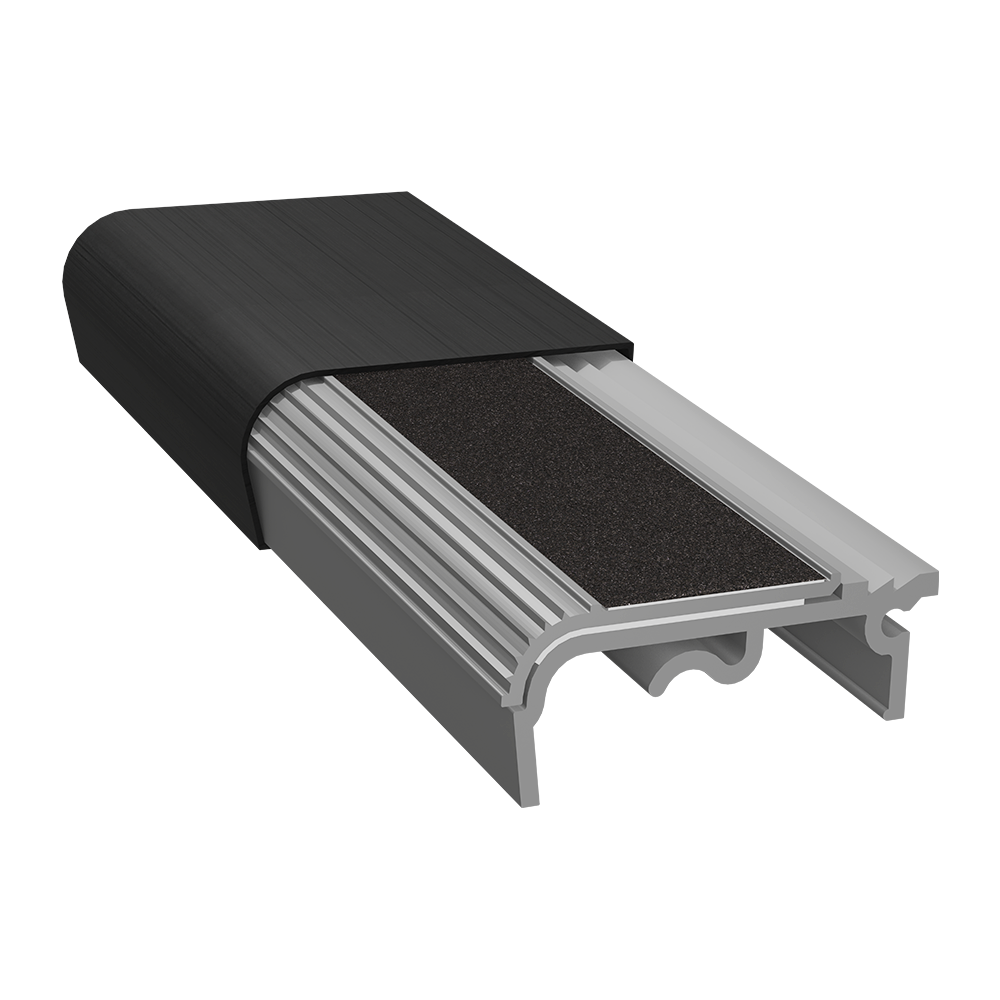

STNP-GTB | Grey | Clear Anodize | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Grey PVC - Yellow Powder Coat | |||||||
|
STNP-GY | Grey | Yellow Powder Coat | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-GY9203 | Grey | Yellow Powder Coat | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

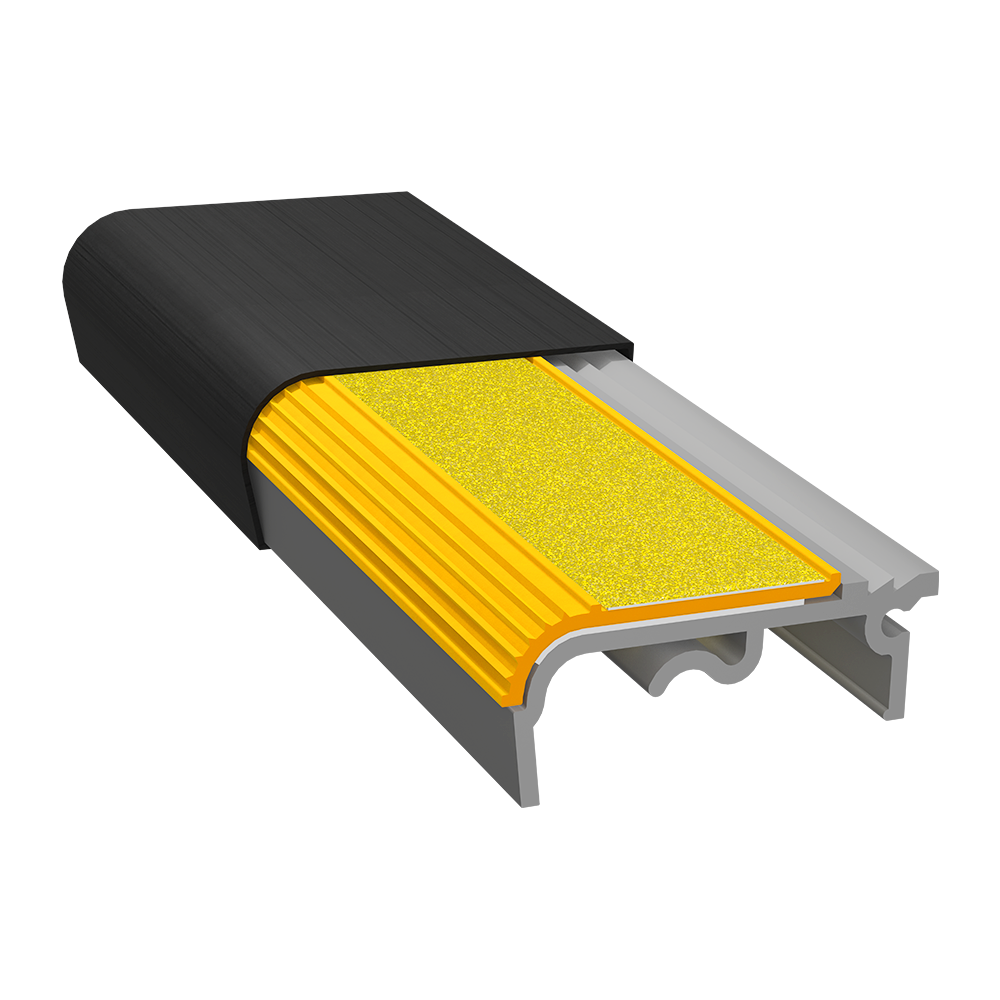

STNP-GYTY | Grey | Yellow Powder Coat | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-GYTB | Grey | Yellow Powder Coat | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Grey PVC - Black Powder Coat | |||||||
|

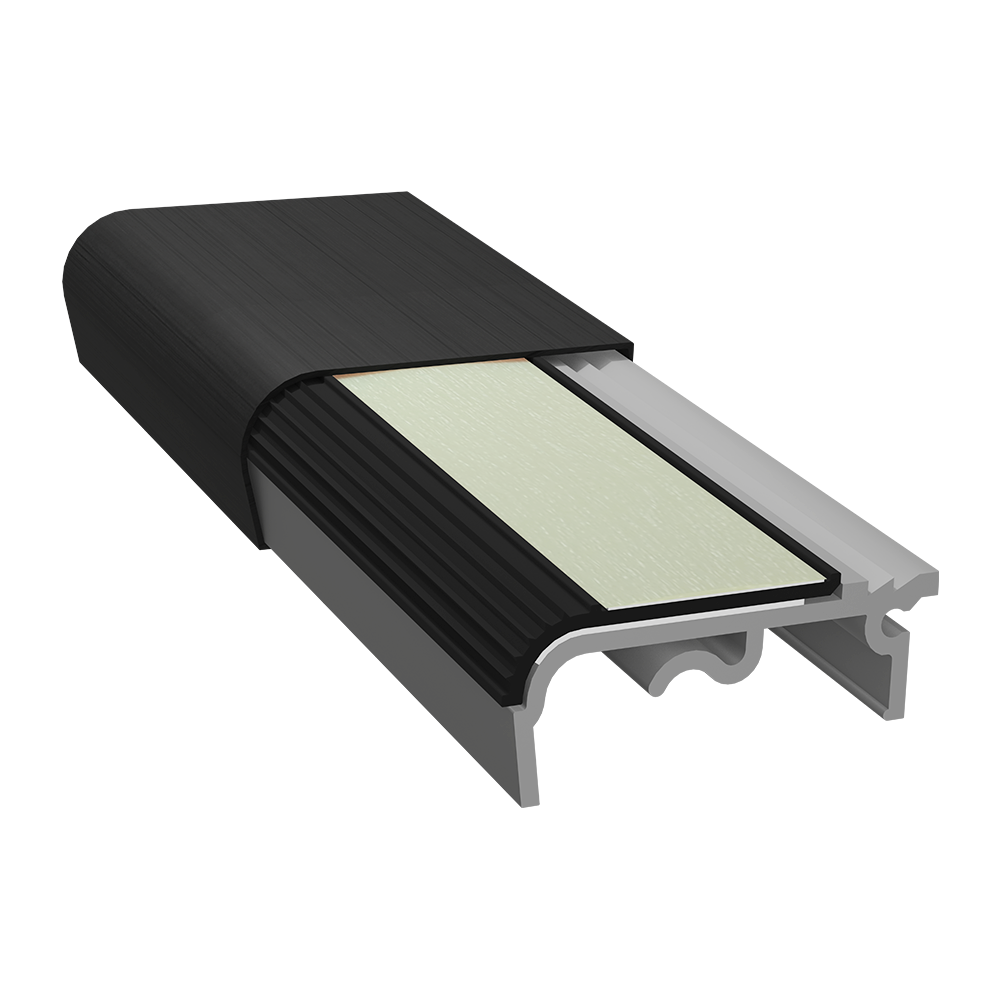

STNP-GB | Grey | Black Powder Coat | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

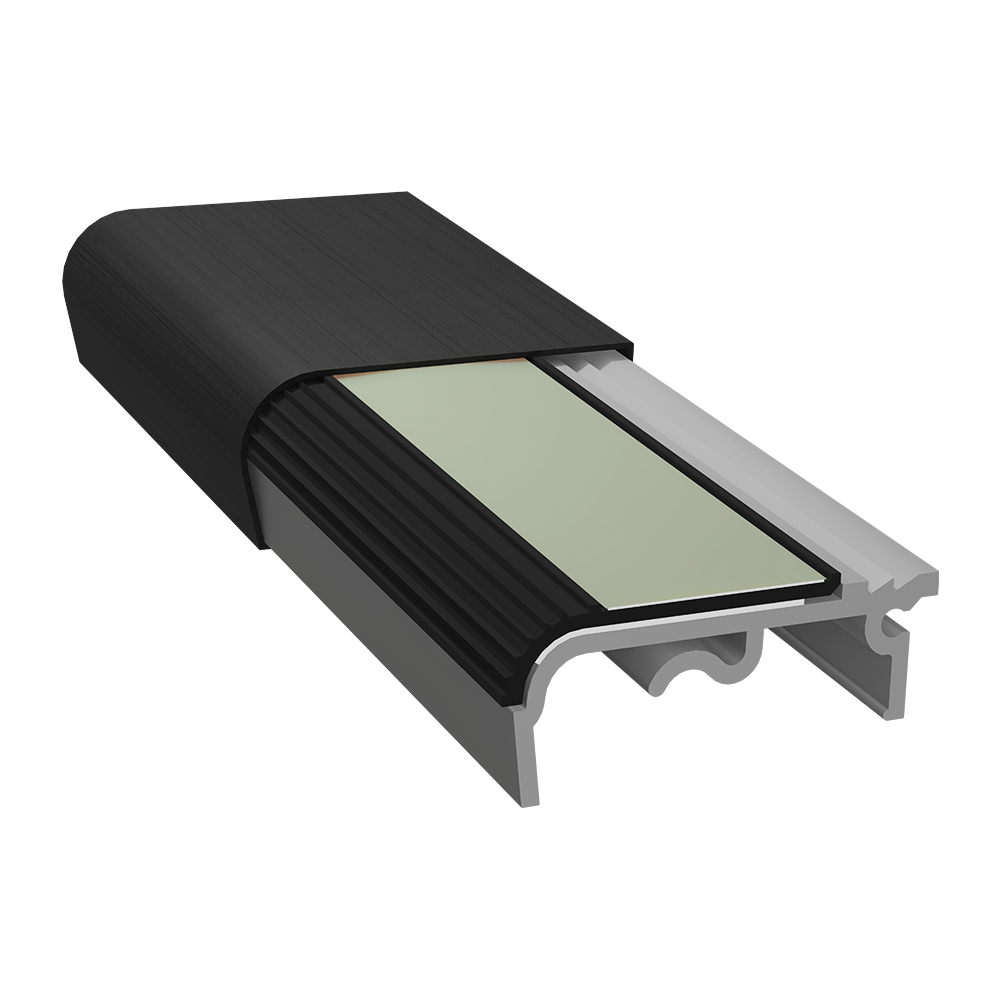

STNP-GB9203 | Grey | Black Powder Coat | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

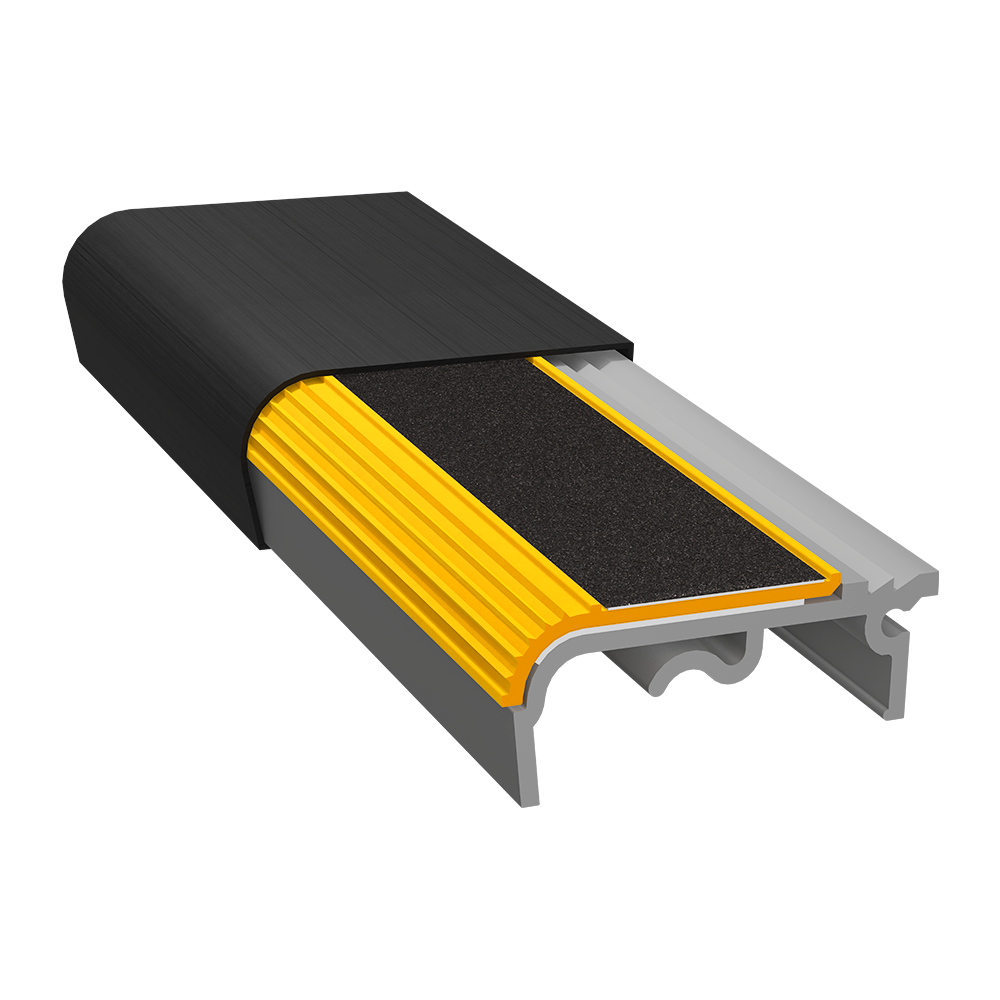

STNP-GBTY | Grey | Black Powder Coat | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

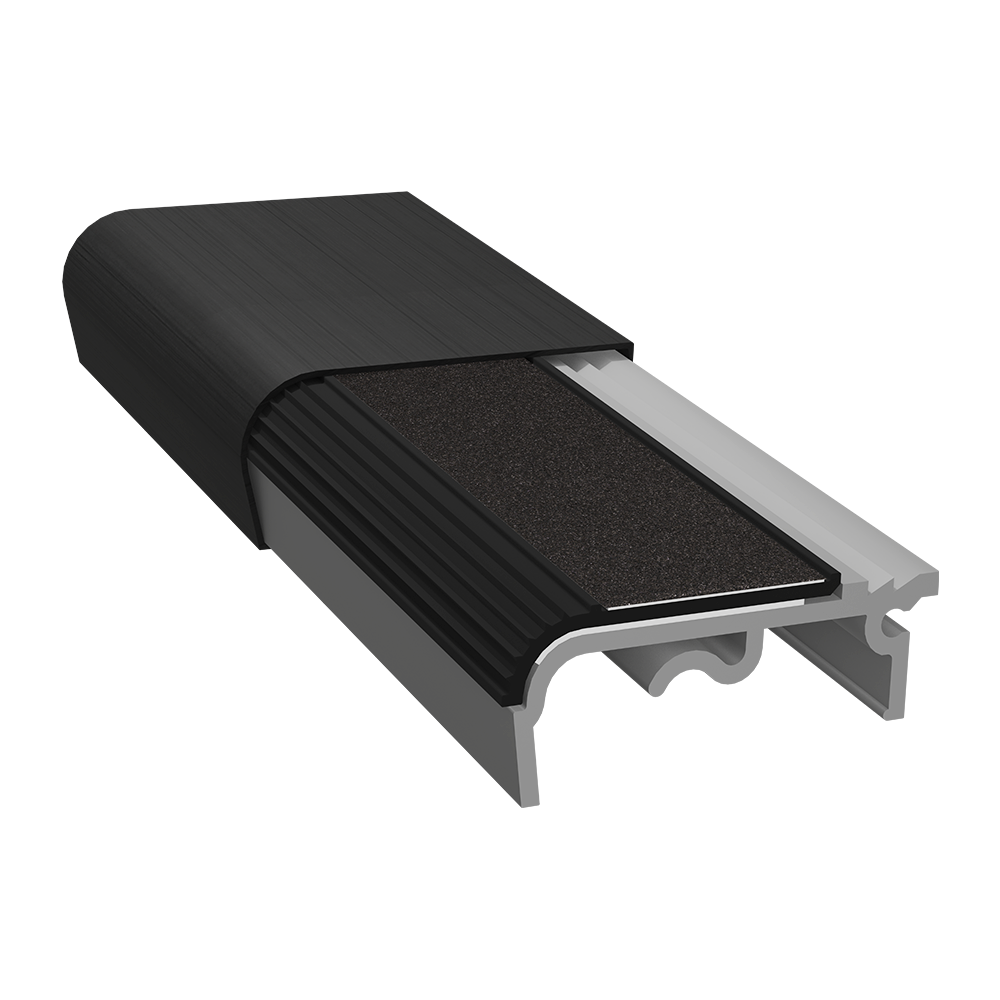

STNP-GBTB | Grey | Black Powder Coat | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Grey PVC - Mill Finish | |||||||
|

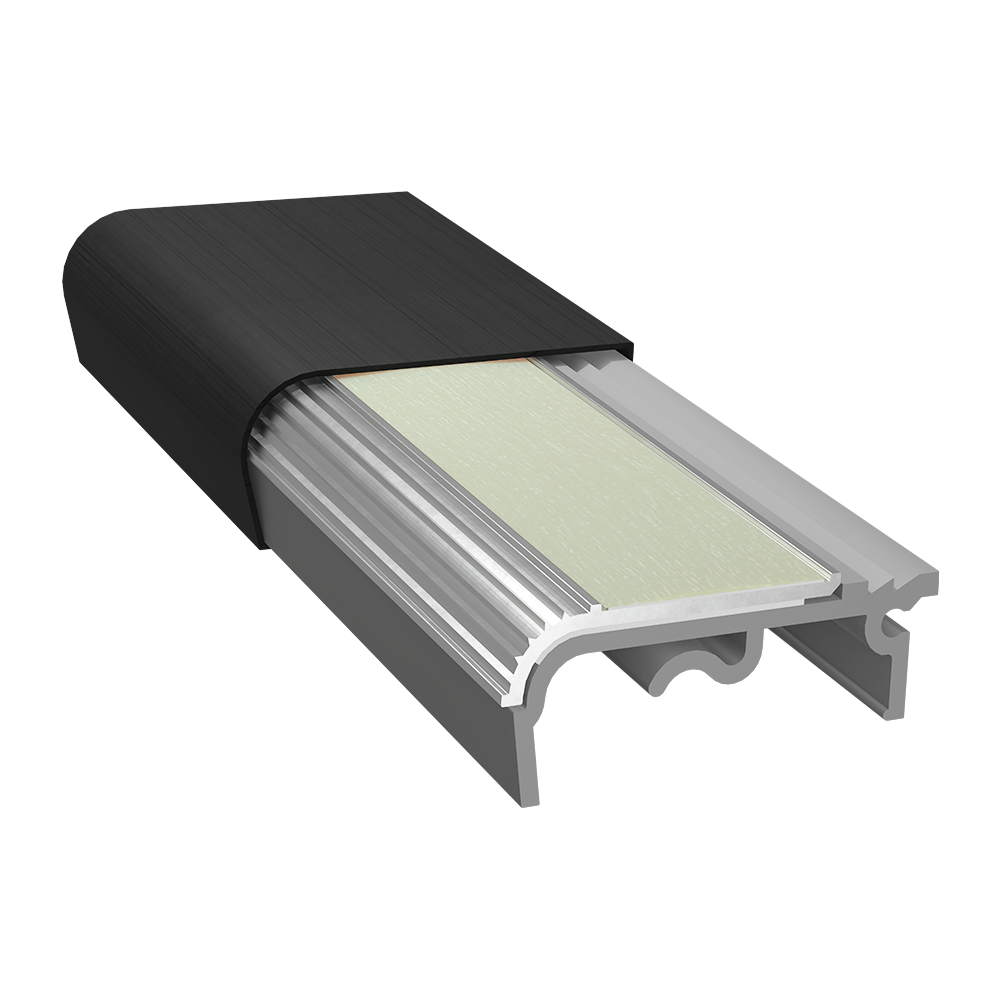

STNP-GMF | Grey | Mill Finish | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-GMF9203 | Grey | Mill Finish | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-GMFTY | Grey | Mill Finish | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

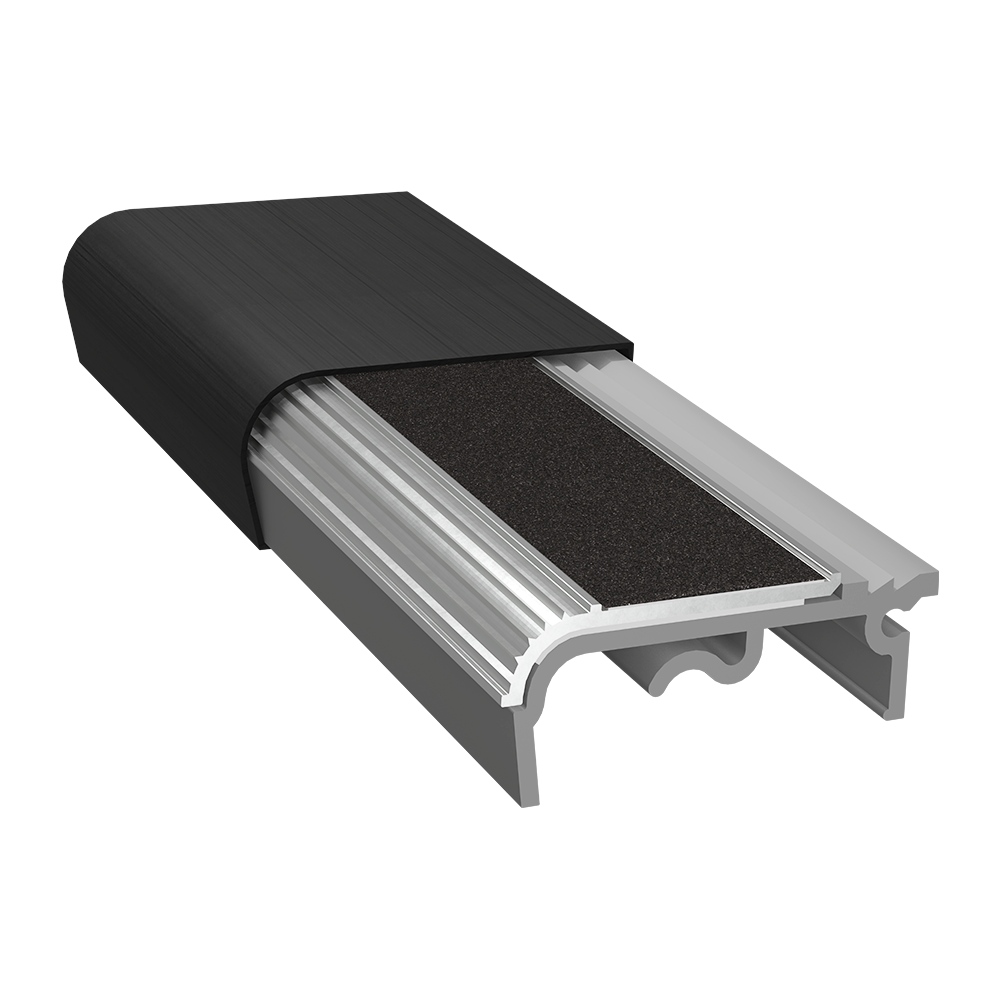

STNP-GMFTB | Grey | Mill Finish | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Standard - Black PVC - Clear Anodize | |||||||
|

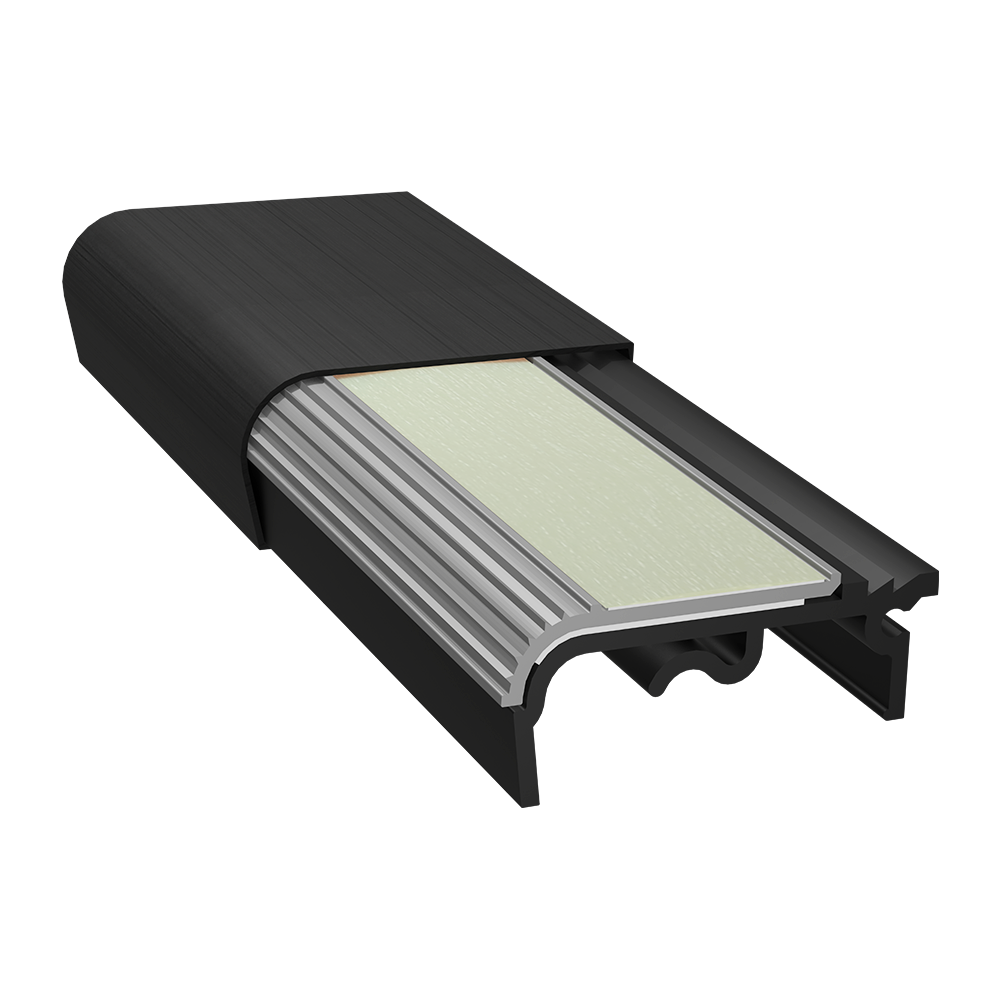

STNP-B | Black | Clear Anodize | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

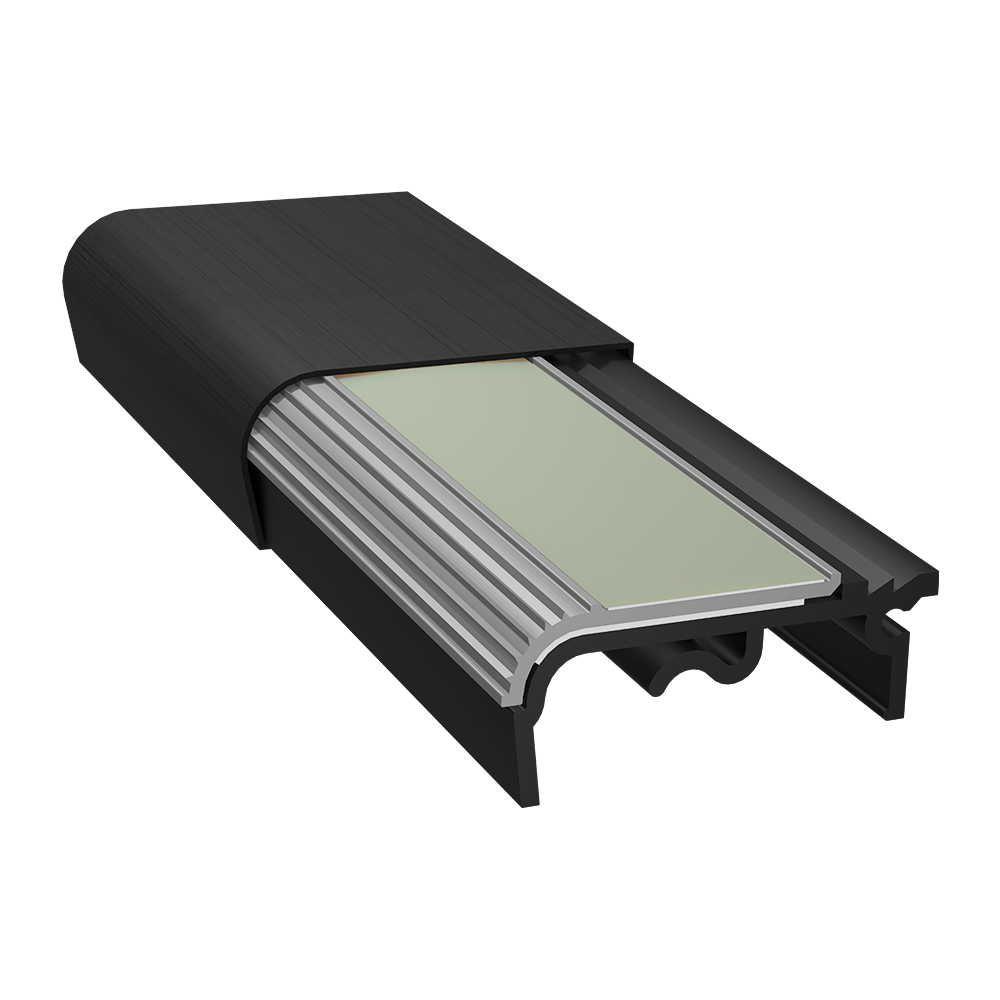

STNP-B9203 | Black | Clear Anodize | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

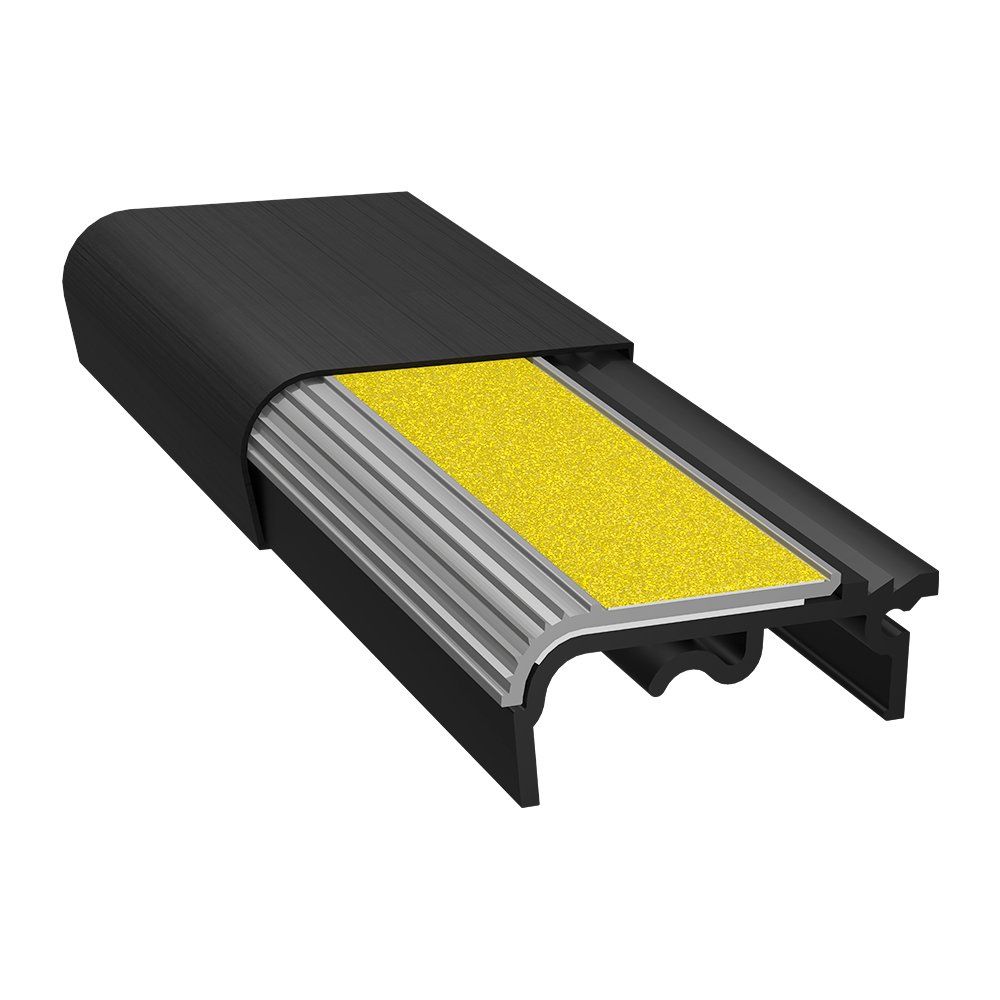

STNP-BTY | Black | Clear Anodize | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

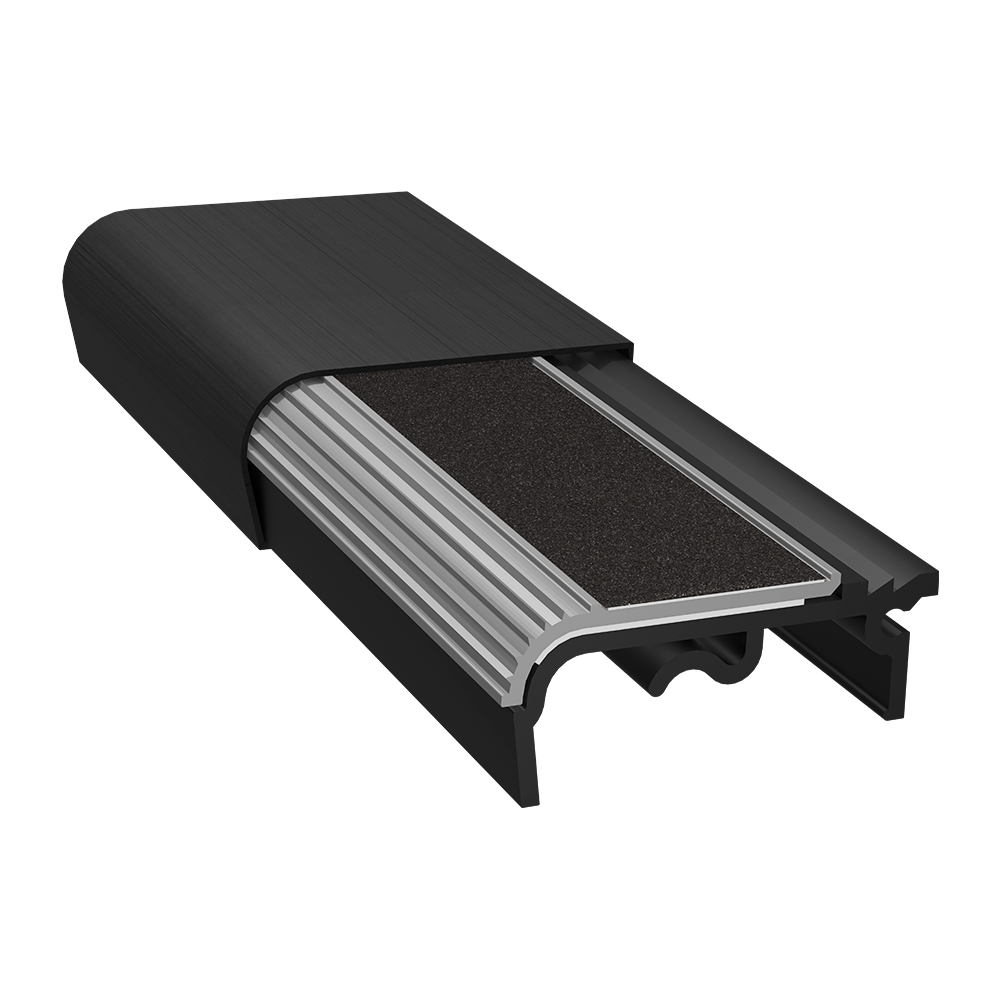

STNP-BTB | Black | Clear Anodize | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Black PVC - Yellow Powder Coat | |||||||
|

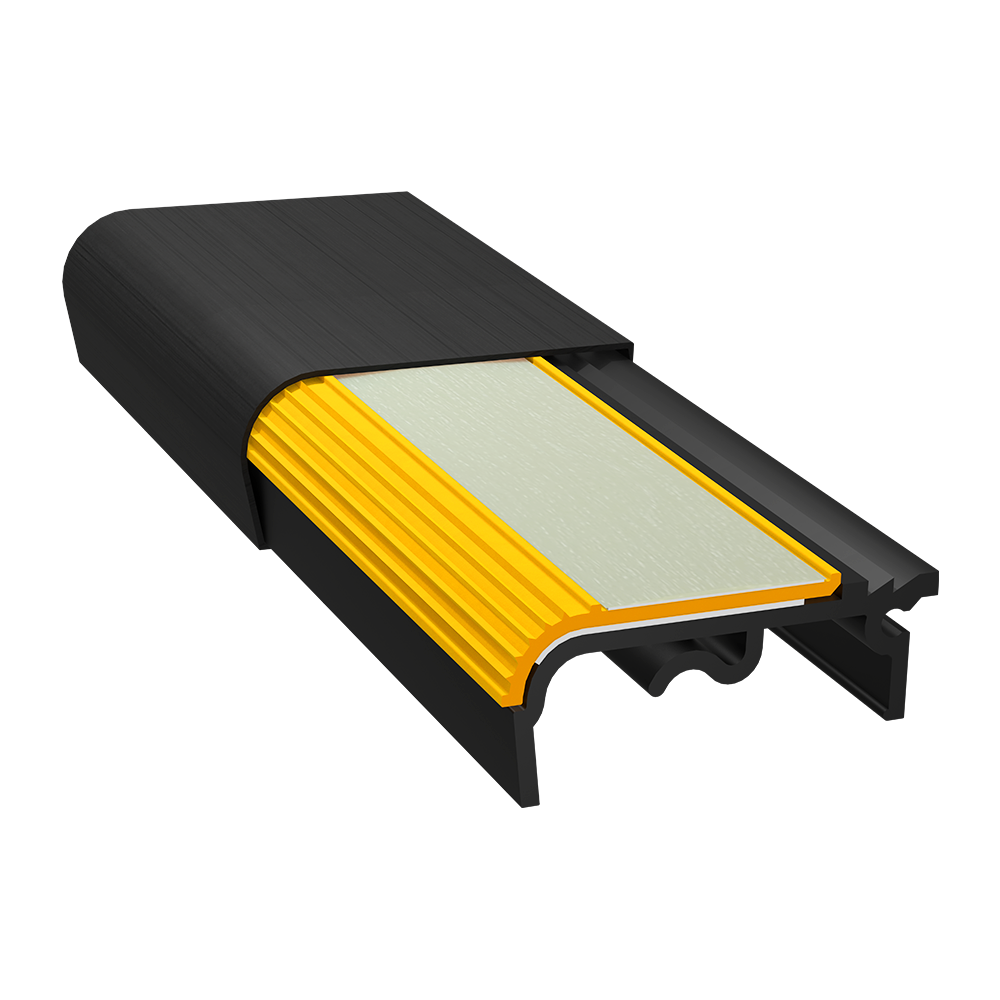

STNP-BY | Black | Yellow Powder Coat | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

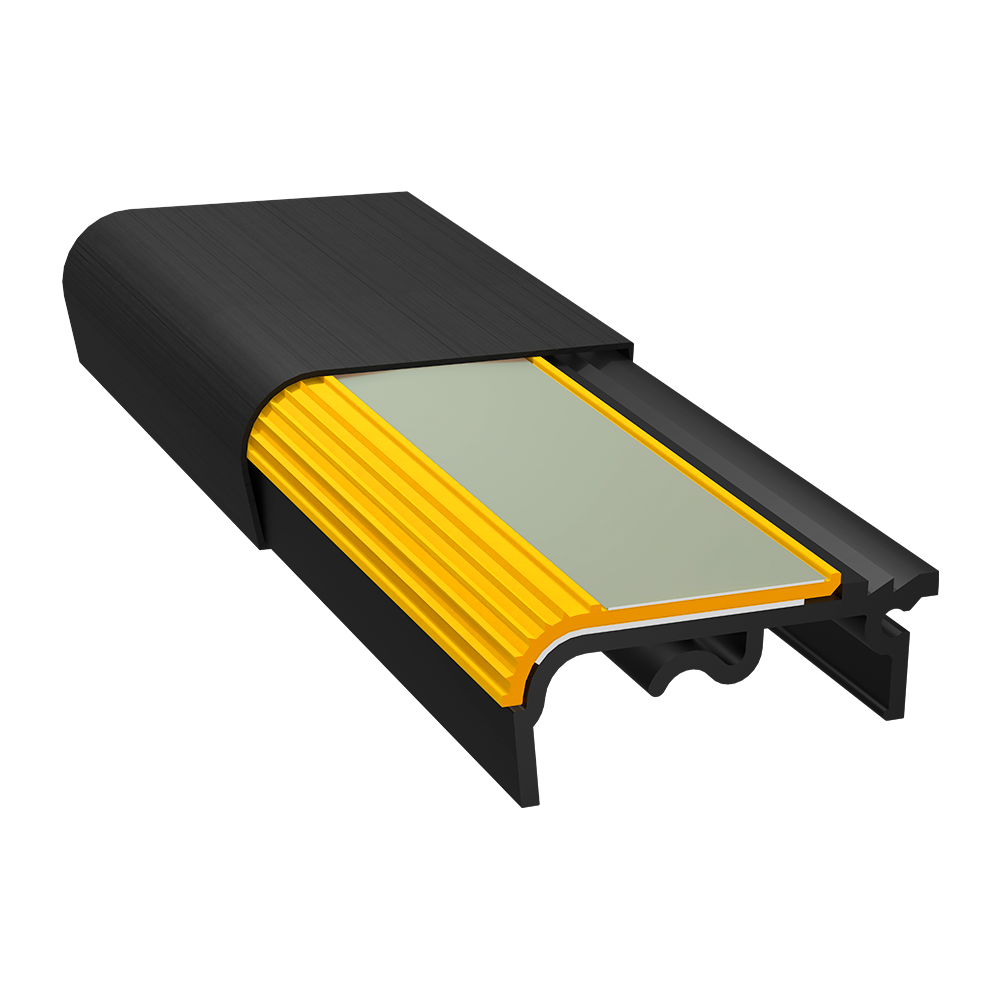

STNP-BY9203 | Black | Yellow Powder Coat | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-BYTY | Black | Yellow Powder Coat | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

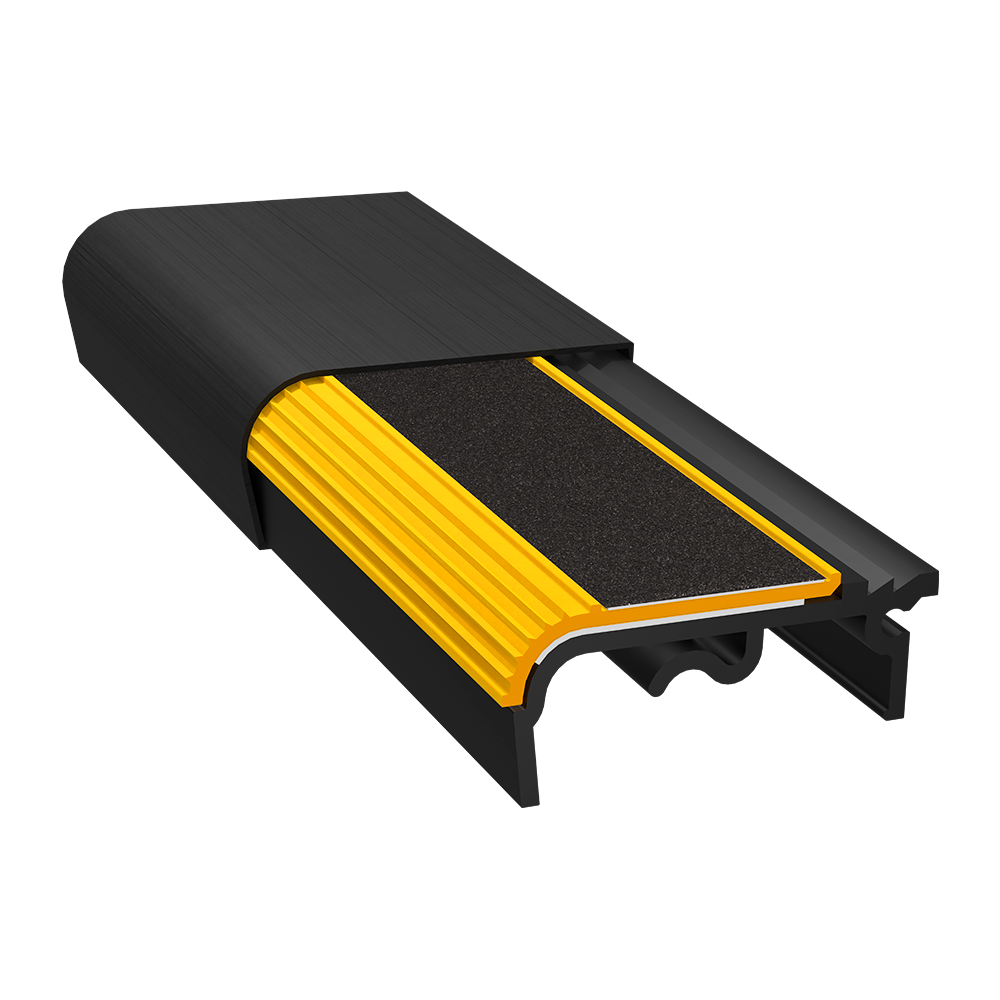

STNP-BYTB | Black | Yellow Powder Coat | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Black PVC - Black Powder Coat | |||||||
|
STNP-BB | Black | Black Powder Coat | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

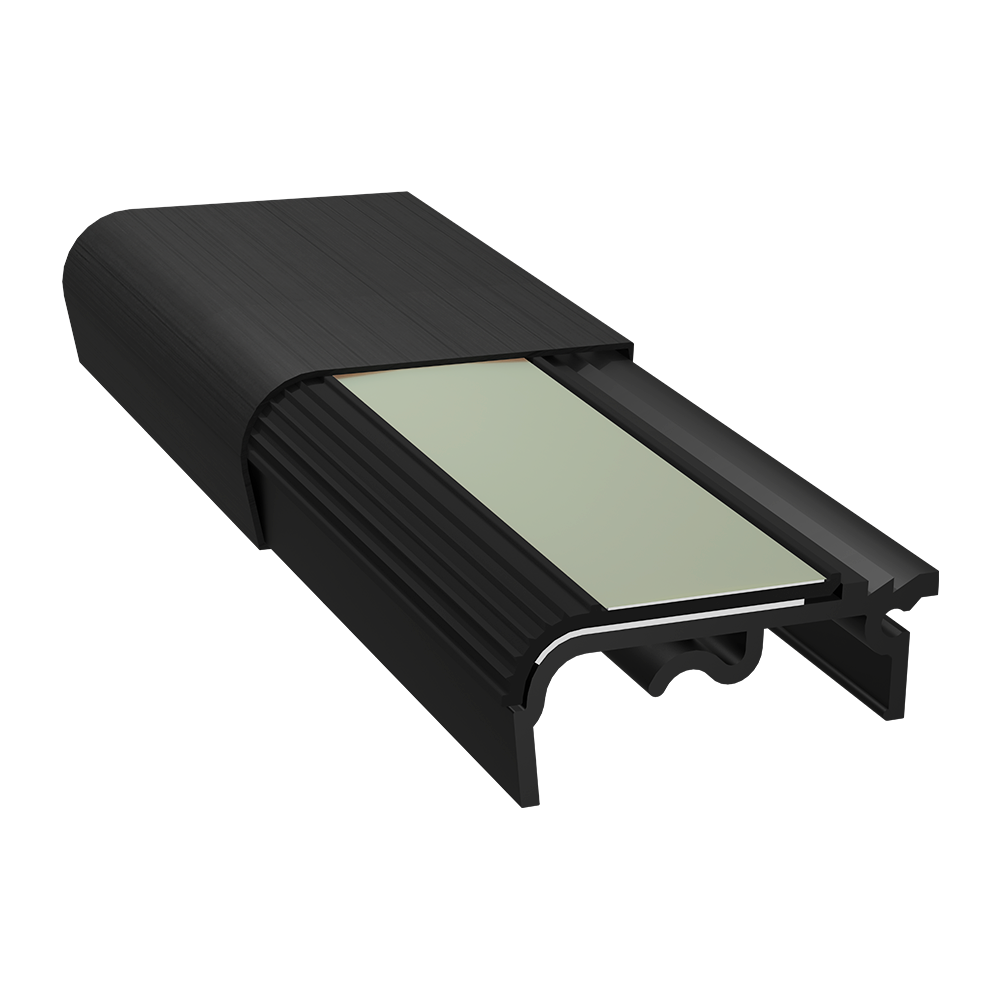

STNP-BB9203 | Black | Black Powder Coat | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-BBTY | Black | Black Powder Coat | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

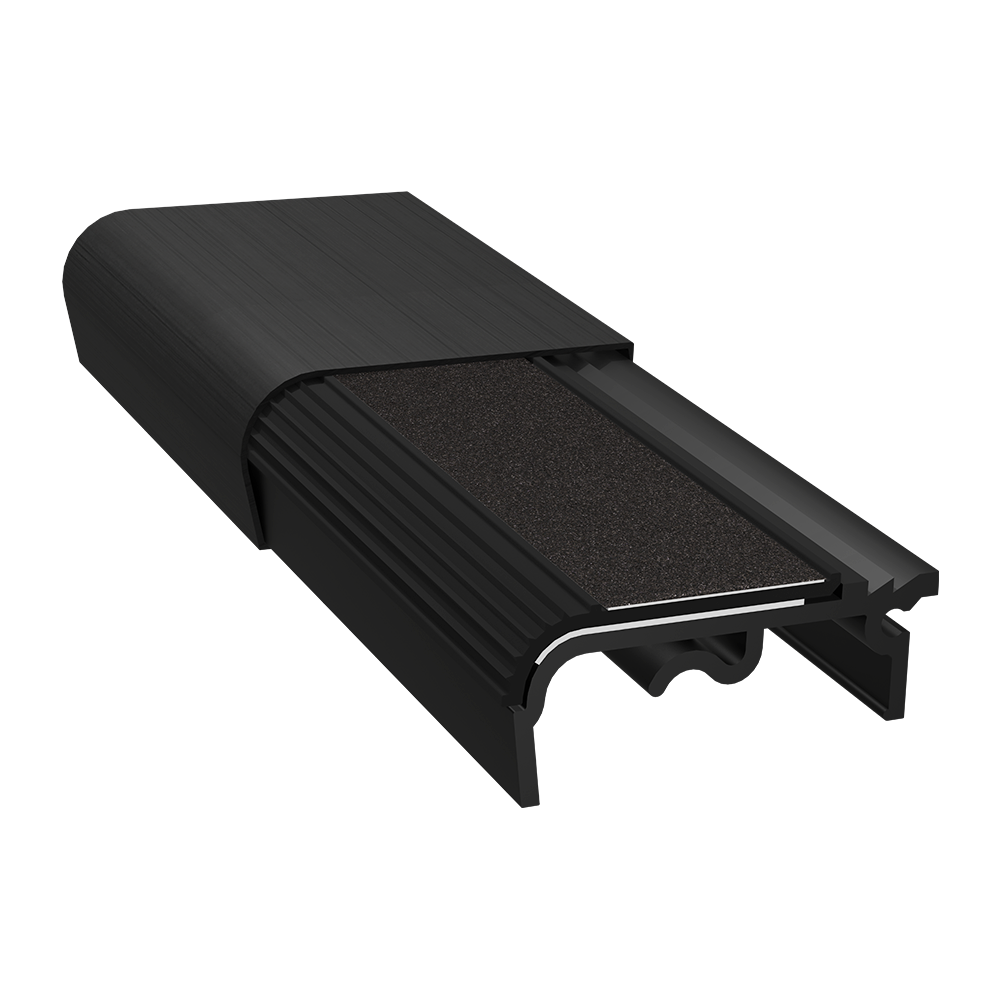

STNP-BBTB | Black | Black Powder Coat | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
| Custom - Black PVC - Mill Finish | |||||||
|
STNP-BMF | Black | Mill Finish | Photo-Glo STNF | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|
STNP-BMF9203 | Black | Mill Finish | Photo-Glo S9203 | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

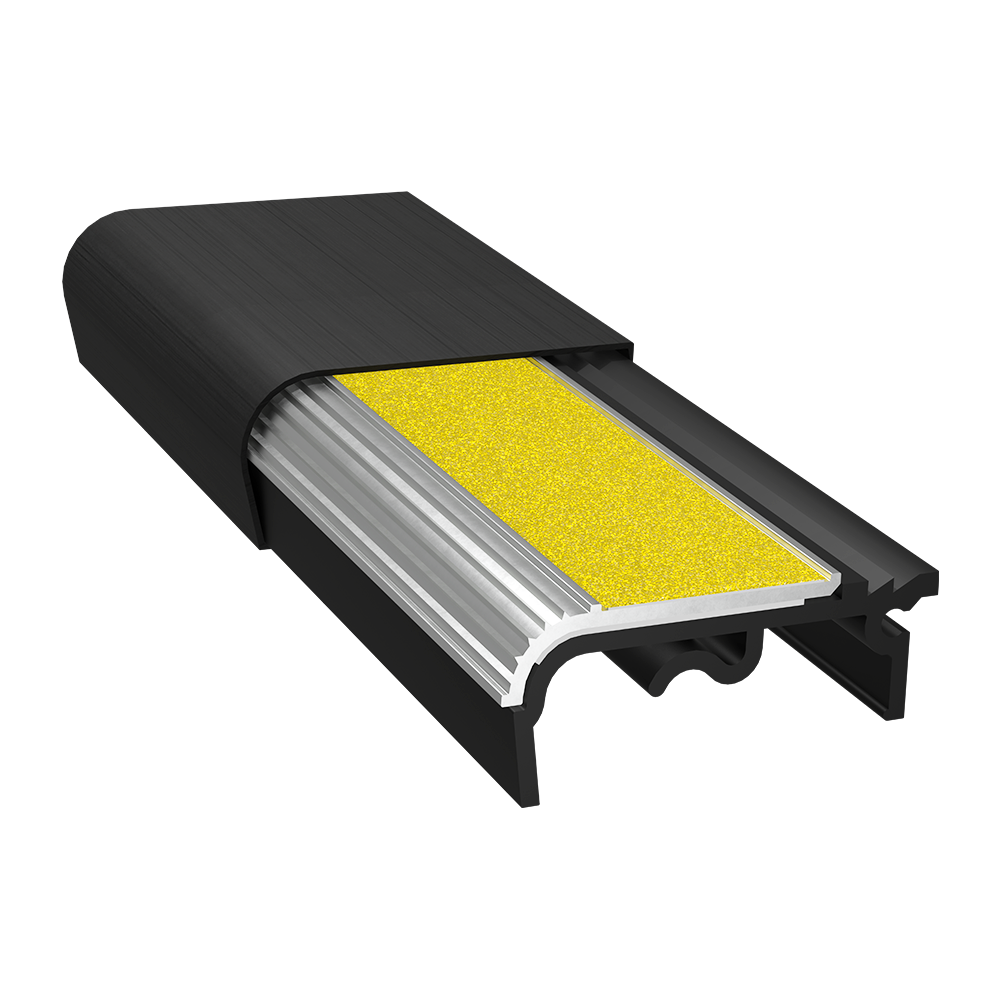

STNP-BMFTY | Black | Mill Finish | Traction Yellow | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
|

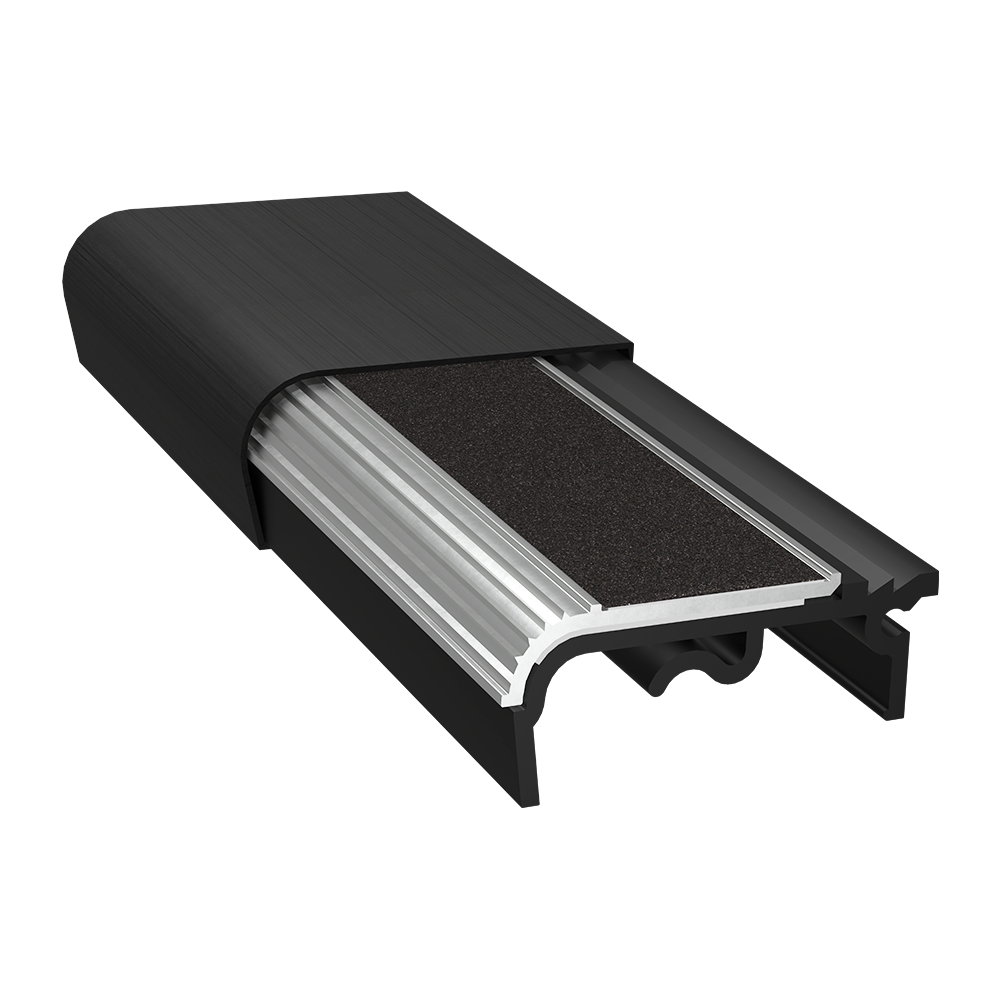

STNP-BMFTB | Black | Mill Finish | Traction Black | Clips to 14-10ga x 3/4" metal pan nose before pour. | Included | 12'-0" LF |
* Custom options may require additional lead time
TECHNICAL INFORMATION
Application:
Interior or exterior use. Pour-In-Place Pan Filled Stairs with 14-10ga x 3/4” metal pan nose.
Transition:
Concrete shall be level with nosing during install for flush transition
Code Required Placement:
- Leading edge of glow stripe shall be placed 1/2” max from leading edge of step.
- Glow or contrasting stripe must extend full width of step.
- Terminate nosing/stripe with 1/8“ max gap from each end of tread.
Max Length:
12’-0” Long
Supply:
Cut to specified length, fully assembled to selected options. Custom options may require additional lead time.
PVC Isolator:
Yellow, Grey, Black
Extruded Aluminum:
Alloy 6063-T5. Clear Anodized, Yellow Powder Coat, Black Powder Coat, Mill Finish
1″ Insert Strips:
Photo-Glo® STNF, Photo-Glo® S9203, Traction Yellow, Traction Black
Install Attachment:
- Continuous extruded PVC Isolator clips to 14-10ga x 3/4“ metal pan nose before pour.
- PVC isolator shall be flush with front and top face of concrete tread.
- Creates a 5/16” bull-nose radius.
Protection Cover:
Included, shop installed. Tear off after concrete cures, near end of construction.
Warranty:
Up to 25 Years. Contact Safe-T-Nose for special product warranty.
Life-cycle:
Up to 30 years with proper install and maintenance.
Compliance:
ASTM E303 / ASTM E2072 / UL 1994 / UL 410 / IBC / IFC / NFPA 101 / NFPA 170 / OSHA / ADA / TITLE 24
APPLICATIONS
Carpet Stair Nosings
Cast-In-Place Stair Nosings
Cement Stair Nosings
FREQUENTLY ASKED QUESTIONS
What is a STNP pour-in-place aluminum stair nosing with PVC Isolator?
The STNP pour-in-place aluminum stair nosing with PVC isolator is designed to prevent galvanic corrosion between the aluminum nose, stair pan, and concrete fill. The PVC isolator clips securely to a 14–10ga × 3/4” pan nose prior to the concrete
pour and remains in place during placement. The aluminum nose is replaceable, with stripe options available to meet specific project requirements. This nosing enhances slip resistance, visibility, and long-term durability for commercial stairways. For alternative models suited to pan-filled stair construction, refer to the STNC3 and STNC3-RB.
What is the purpose of the STNP stair nosing removable protective construction cover?
STNP stair nosings feature a removable protective construction cover that shields the nosing surface during concrete placement and construction traffic. This cover protects the visible strip and aluminum finish, ensuring a clean, professional appearance at project completion. After construction, the cover peels away easily, revealing a like-new surface ready for occupancy.
Are STNP stair nosings compliant with IBC, ADA, and Title 24 codes?
Yes, STNP stair nosings are manufactured to meet or exceed International Building Code (IBC), Americans with Disabilities Act (ADA), and Title 24 contrasting stripe requirements for stair safety. Available color options, contrasting visual strips with slip-resistant surfaces, help projects meet and exceed code compliance.
Can STNP stair nosings be used on cast-in-place or precast concrete stair treads?
No, STNP stair nosings are specifically designed to fit metal pan filled stairs. See our stair nosing models STNC, STNC-RB, STNC3, and STNC3-RB for cast-in-place or precast concrete treads.
What finish options are available for the STNP stair nosings?
We offer a range of PVC isolator colors, aluminum finishes, and insert strip options to suit project needs. Choices include photoluminescent glow-in-the-dark strips, abrasive grit strips, mill finish, anodized aluminum, and durable powder-coated finishes. These options enhance visibility, support code compliance, and provide customizable safety solutions.
