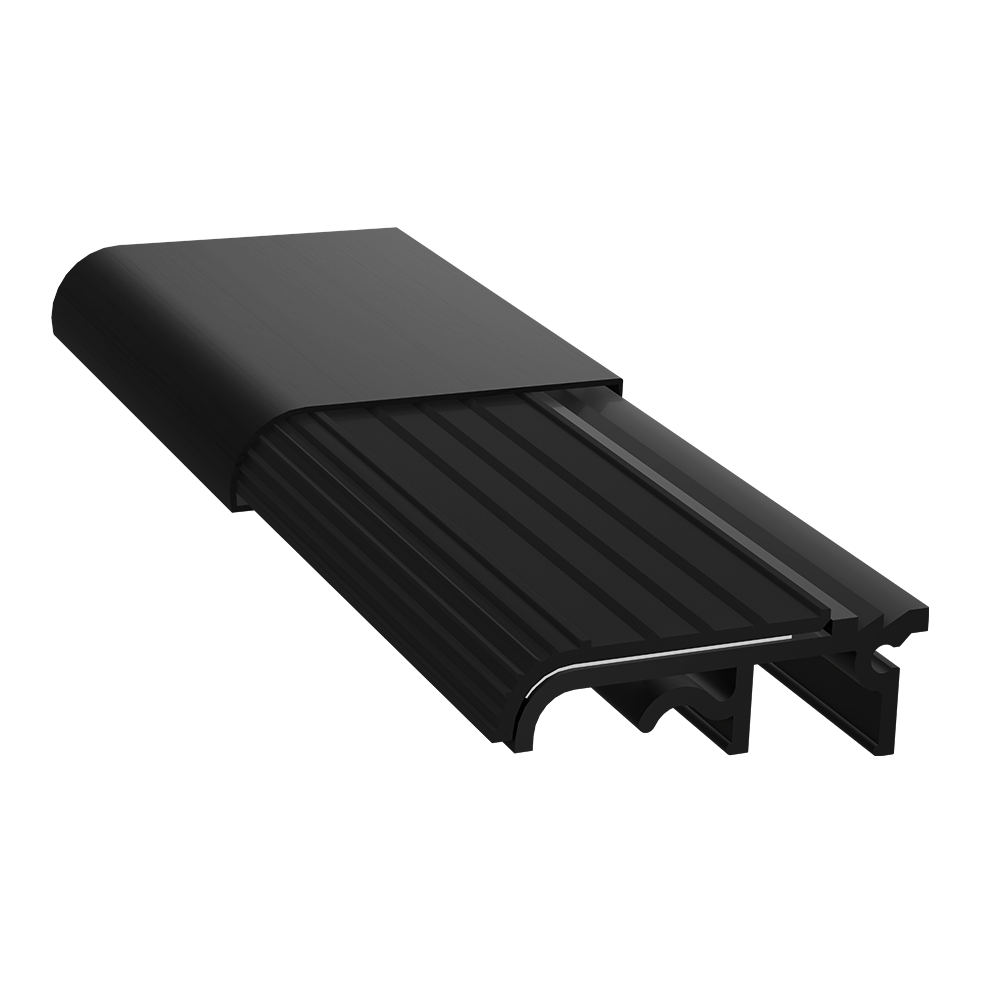

STNC-RB: 2'' RIBBED CAST-IN-PLACE STAIR NOSING
STNC-RB: 2'' RIBBED CAST-IN-PLACE STAIR NOSING
The low-profile STNC-RB 2.0” wide ribbed only stair nosing is designed for low maintenance to meet slip-resistance and contrasting stripe requirements. The PVC isolator protects against galvanic corrosion between the aluminum nose and concrete. The aluminum nose is replaceable. The nosing includes a patented protective cover to prevent damage during installation and through construction. Suitable for both interior and exterior environments.
Designed for installation into wet concrete. Ideal for Cast-In-Place Stairs, Precast Stairs or Precast Treads. Creates a bull-nose radius of 5/16”.
Constructed from durable aluminum adhered to the PVC isolator using high bond 3M VHB adhesive. Its slim profile and square back edge creates a flush transition from nose to tread. Multiple colors, finishes and options are available to match project aesthetics or meet specific code requirements.
Code Compliance:
- Compliant with: IBC, IFC, NFPA, ASTM, OSHA, ADA, and California Title 24 contrasting stripe requirements.
- UL Approved.
QUICK DOWNLOAD

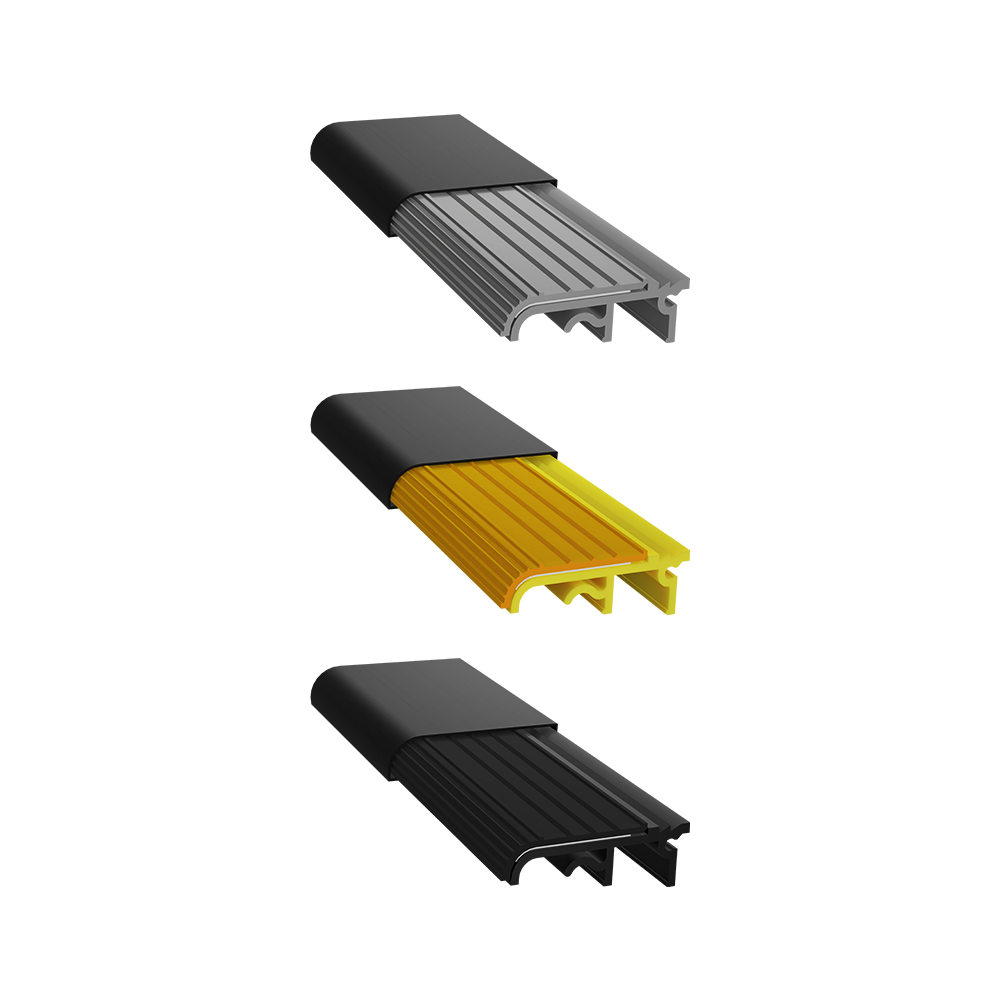

OPTIONS
PVC ISOLATOR
Yellow
Standard
Grey
Standard
Black
Standard
EXTRUDED ALUMINIUM
Finish Options
Clear Anodize
Standard
Yellow Powder Coat
Custom
Black Powder Coat
Custom
Mill Finish
Custom
INSTALL ATTACHMENT
Continuous extruded PVC anchors into wet concrete.
PROTECTION COVER
Included, shop installed. Tear off after concrete cures, near end of construction
* Custom options may require additional lead time.
MODELS
 |
PRODUCT | OPTION 1 | OPTION 2 | INSTALL | PROTECTION | SIZE |
|---|---|---|---|---|---|---|
| Product Image |
Model # | PVC Isolator | Extruded Aluminum | Attachment | Construction Cover | Max Length |
| Standard - Yellow PVC - Clear Anodize | ||||||
 |
STNC-RBY | Yellow | Clear Anodize | Anchors into wet concrete. | Included | 12'-0" LF |
| Custom - Yellow PVC | ||||||
|

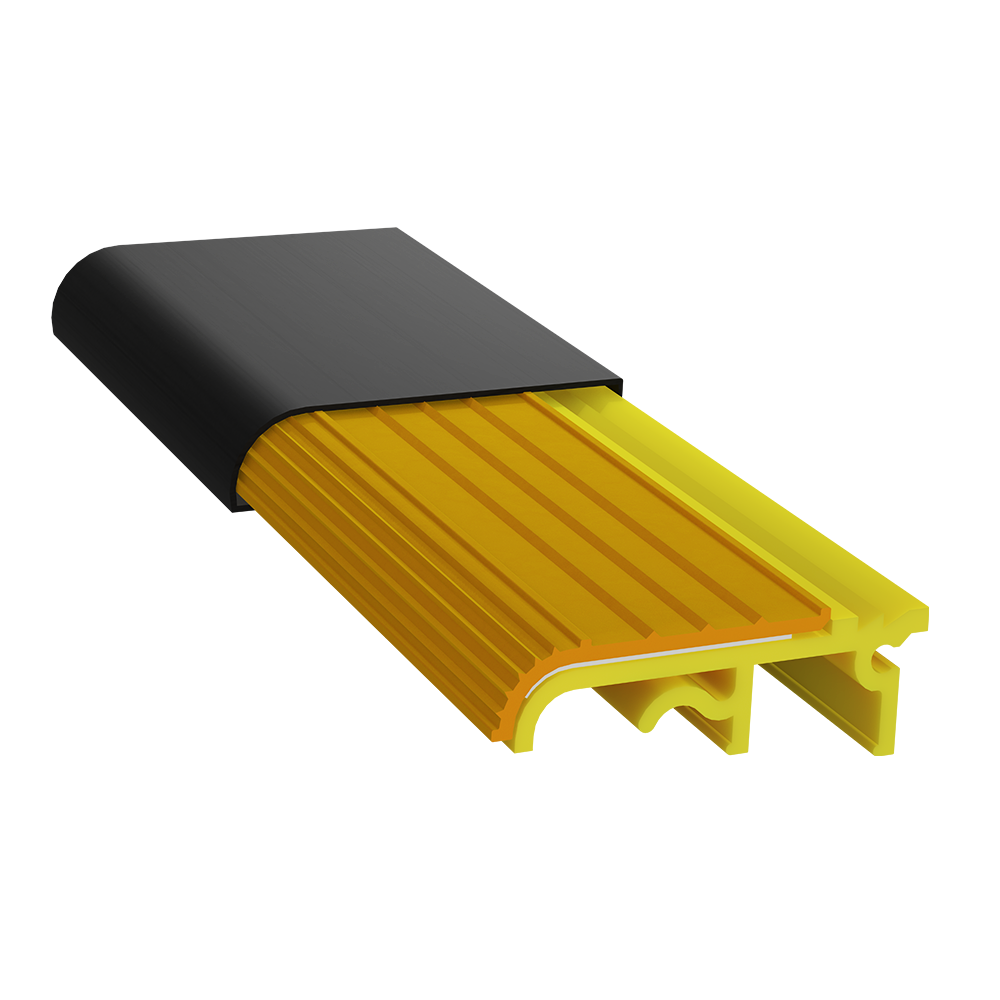

STNC-RBYY | Yellow | Yellow Powder Coat | Anchors into wet concrete. | Included | 12'-0" LF |
|

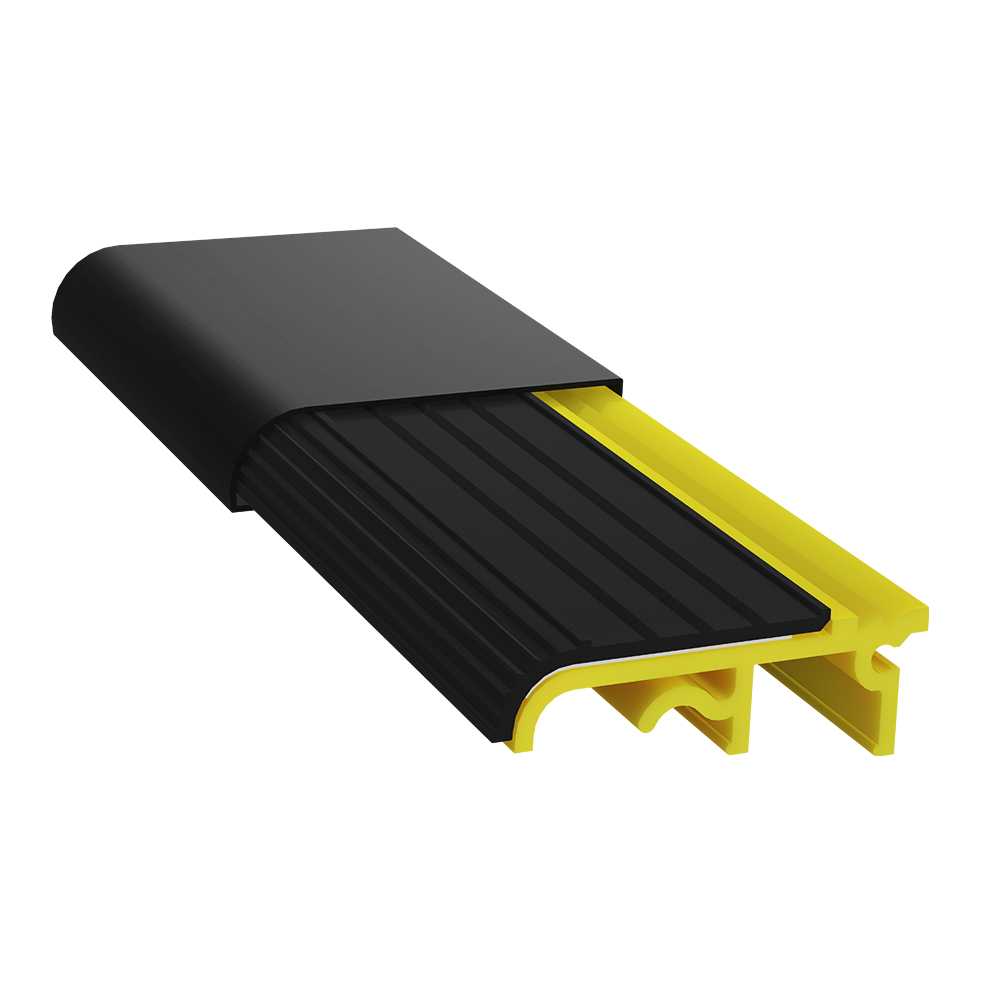

STNC-RBYB | Yellow | Black Powder Coat | Anchors into wet concrete. | Included | 12'-0" LF |
|
STNC-RBYMF | Yellow | Mill Finish | Anchors into wet concrete. | Included | 12'-0" LF |
| Custom - Gray PVC | ||||||
|

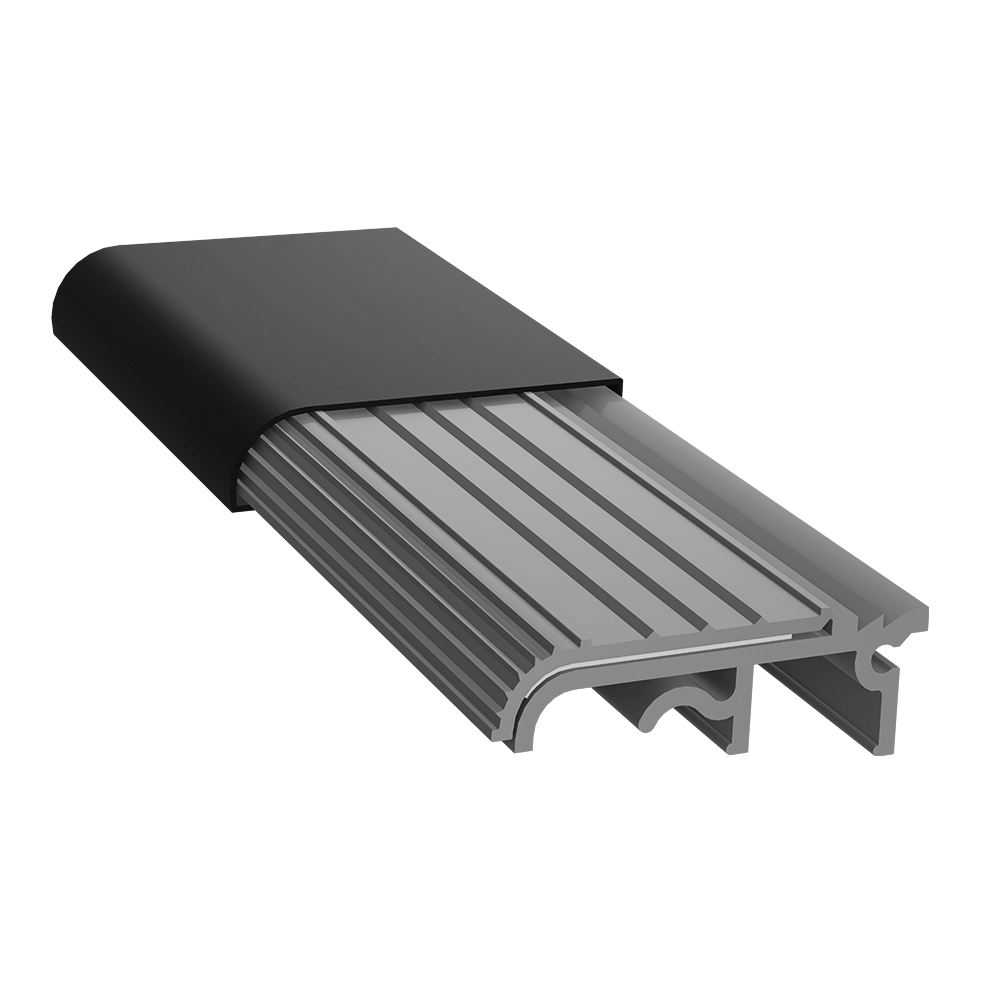

STNC-RBG | Grey | Clear Anodize | Anchors into wet concrete. | Included | 12'-0" LF |
|
STNC-RBGY | Grey | Yellow Powder Coat | Anchors into wet concrete. | Included | 12'-0" LF |
|

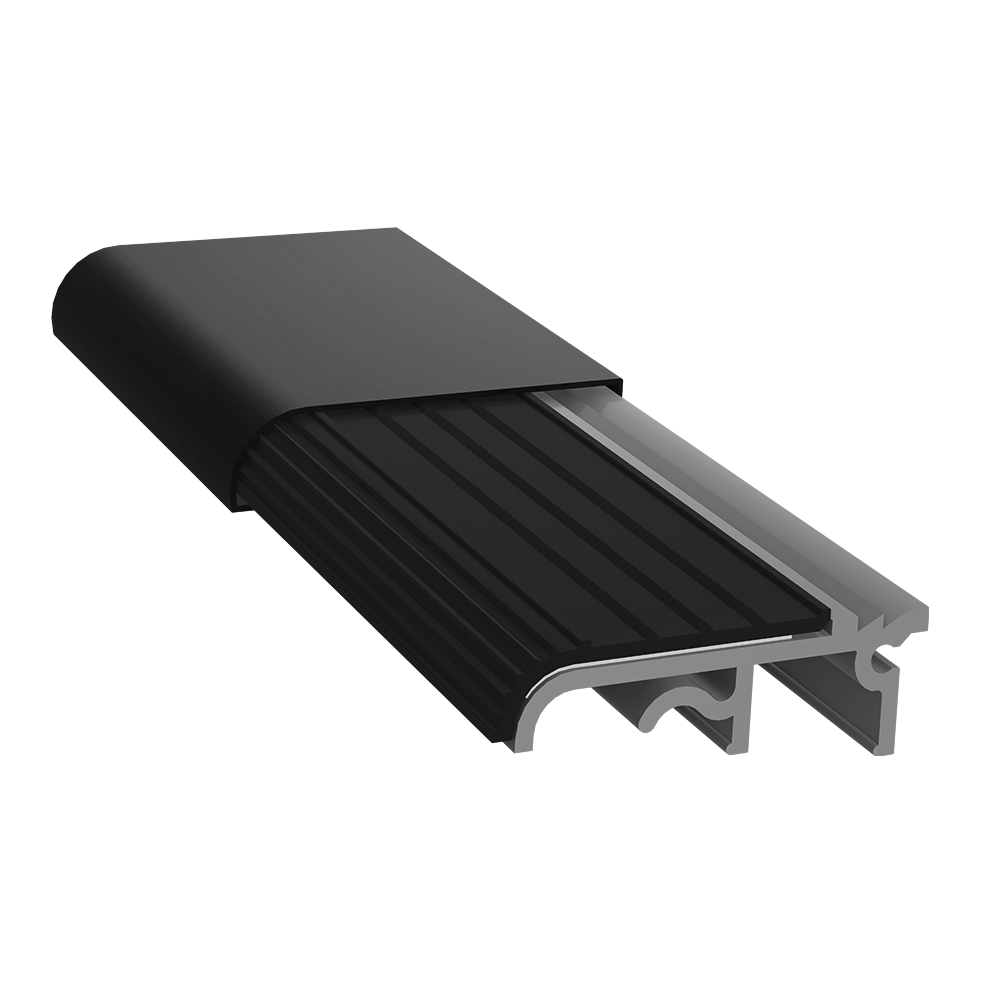

STNC-RBGB | Grey | Black Powder Coat | Anchors into wet concrete. | Included | 12'-0" LF |
|

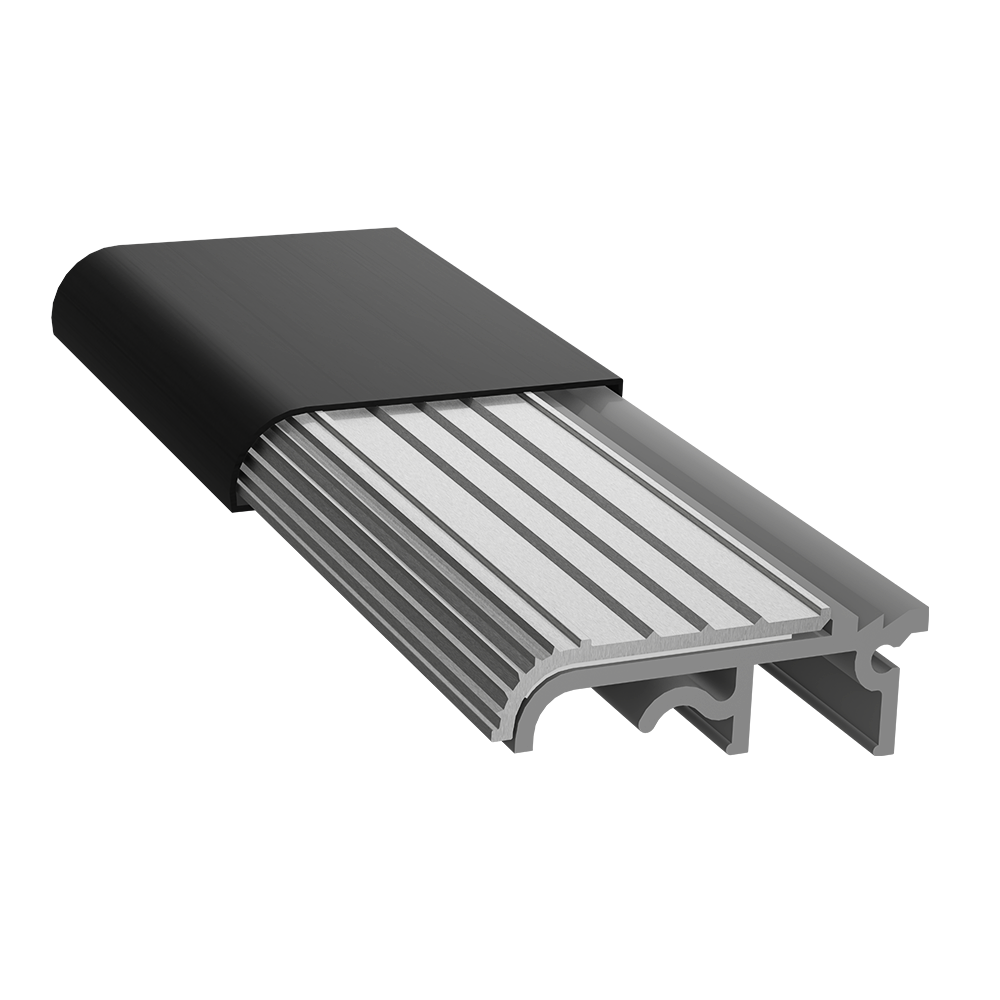

STNC-RBGMF | Grey | Mill Finish | Anchors into wet concrete. | Included | 12'-0" LF |
| Custom - Black PVC | ||||||
|

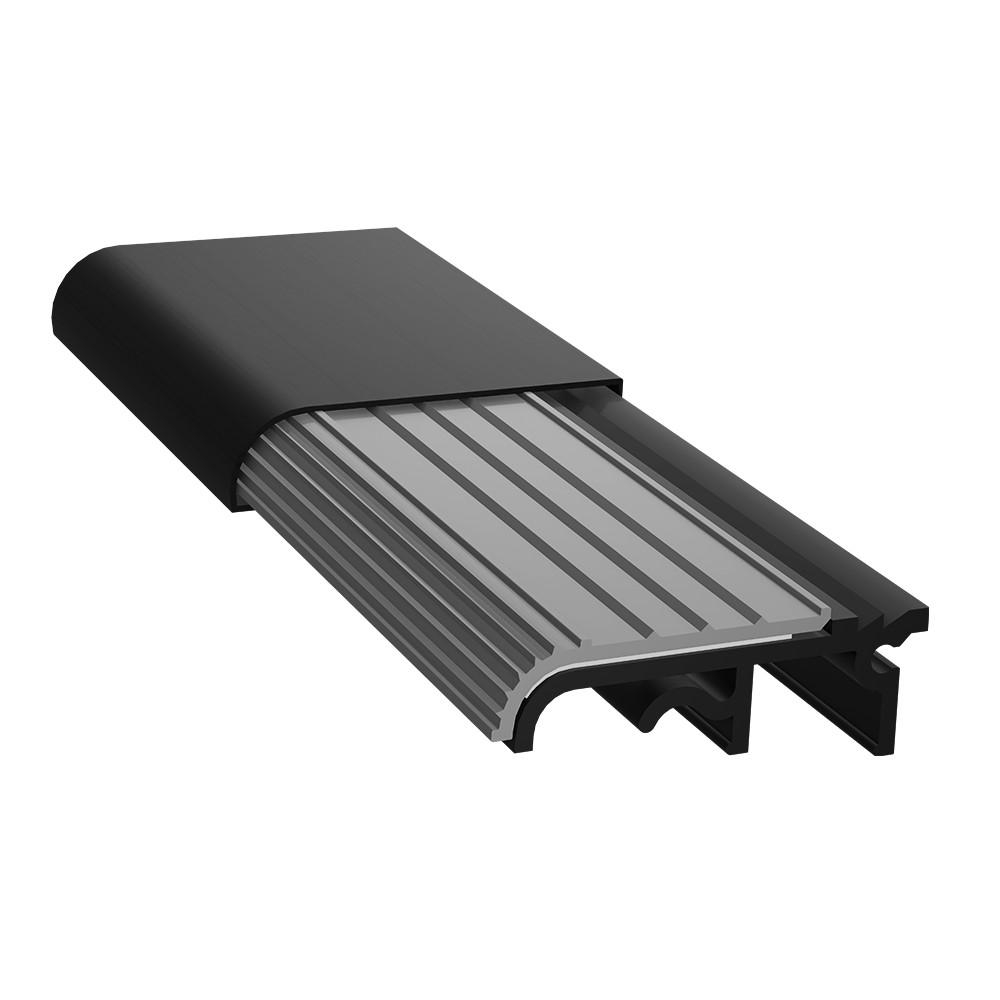

STNC-RBB | Black | Clear Anodize | Anchors into wet concrete. | Included | 12'-0" LF |
|

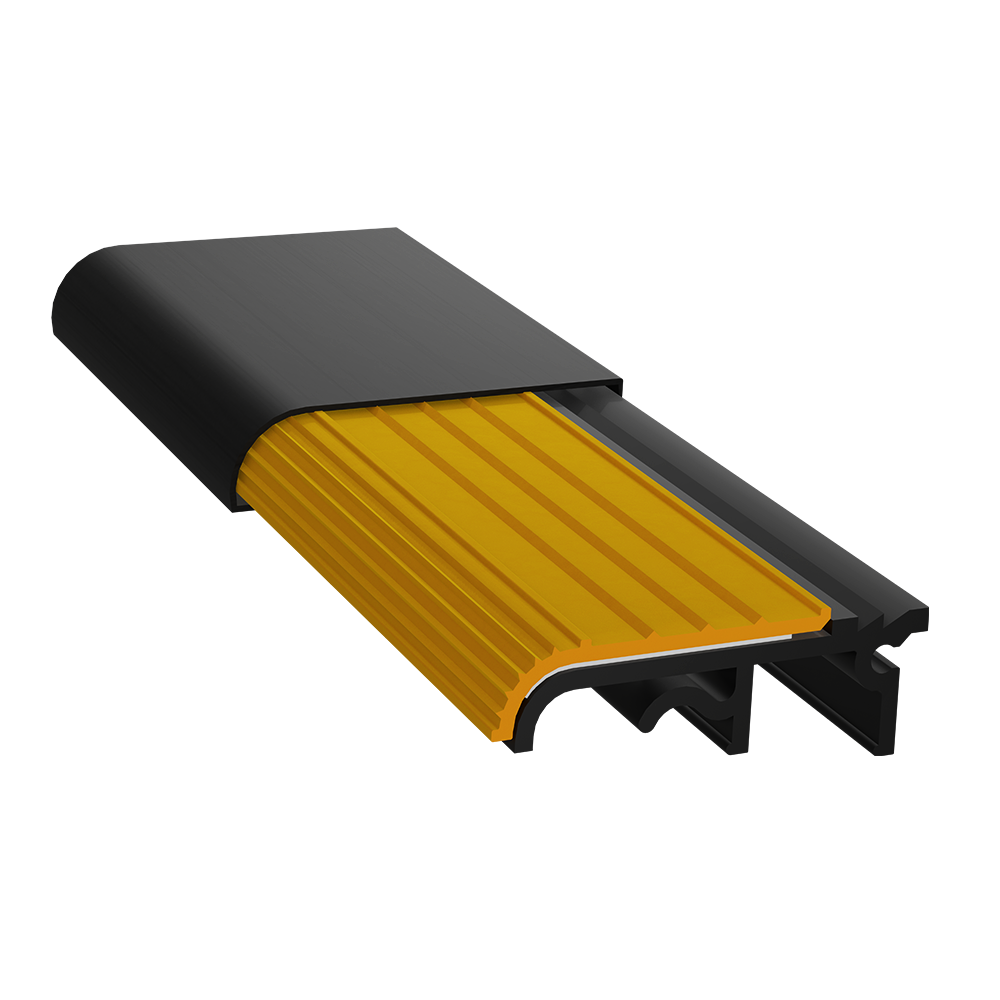

STNC-RBBY | Black | Yellow Powder Coat | Anchors into wet concrete. | Included | 12'-0" LF |
|
STNC-RBBB | Black | Black Powder Coat | Anchors into wet concrete. | Included | 12'-0" LF |
|

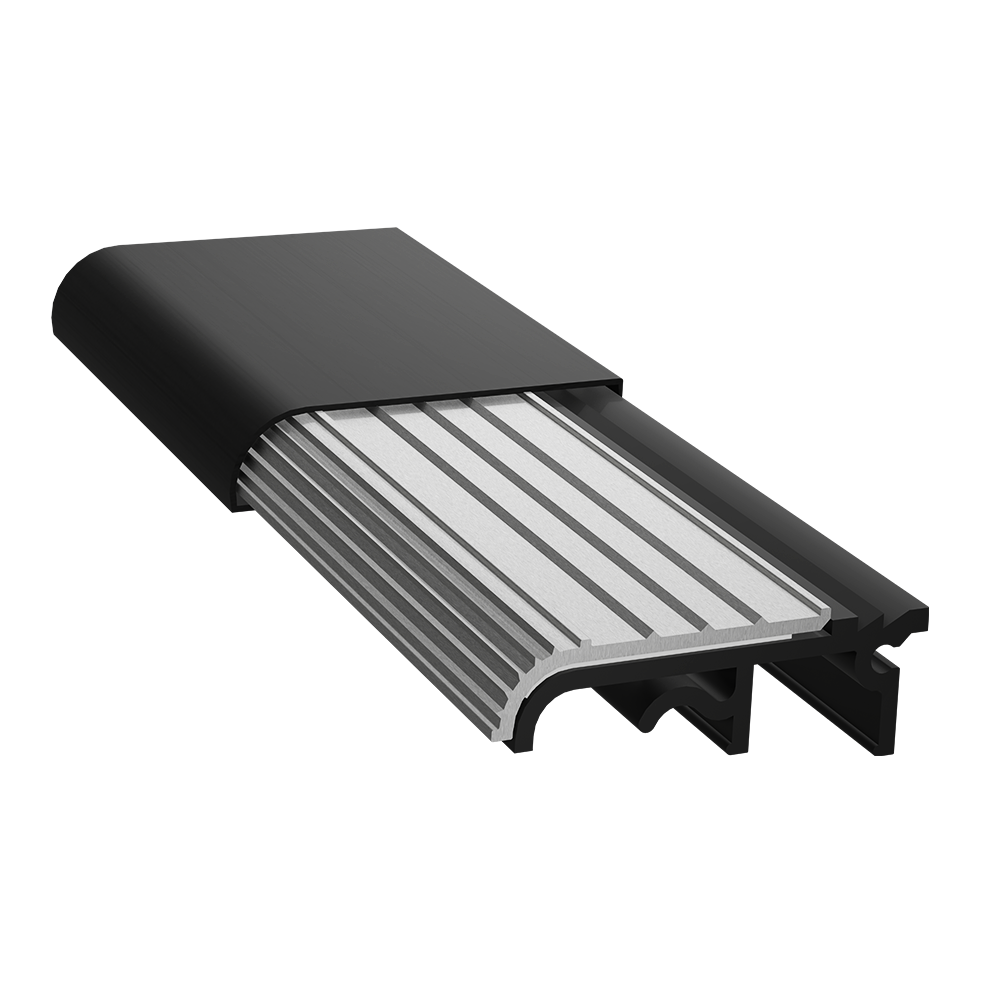

STNC-RBBMF | Black | Mill Finish | Anchors into wet concrete. | Included | 12'-0" LF |
* Custom options may require additional lead time. Please contact Safe-T-Nose for current lead times and availability.
TECHNICAL INFORMATION
Application:
Interior or exterior use. Cast-In-Place Stairs and Precast Treads.
Transition:
Concrete shall be level to nosing during install for flush transition.
Code Required Placement:
- Leading edge of glow stripe shall be placed 1/2” max from leading edge of step.
- Glow or contrasting stripe must extend full width of step.
- Terminate nosing/stripe with 1/8“ max gap from each end of tread.
Max Length:
12’-0” Long
Supply:
Cut to specified length, fully assembled to selected options. Custom options may require additional lead time.
PVC Isolator:
Yellow, Grey, Black
Extruded Aluminum:
Alloy 6063-T5. Clear Anodized, Yellow Powder Coat, Black Powder Coat, Mill Finish
Install Attachment:
- Continuous extruded PVC Isolator anchors into concrete.
- PVC isolator shall be flush with front and top face of concrete tread.
- Creates a 5/16″ bull-nose radius.
Protection Cover:
Included, shop installed. Tear off after concrete cures, near end of construction.
Warranty:
Up to 25 Years. Contact Safe-T-Nose for special product warranty.
Life-cycle:
Up to 30 years with proper install and maintenance.
Compliance:
ASTM E303 / UL 410 / IBC / OSHA / ADA / TITLE 24
APPLICATIONS
Cast-In-Place Stair Nosings
Precast Stair Nosings
Precast Tread Nosings
FREQUENTLY ASKED QUESTIONS
What is a cast-in-place aluminum stair nosing with PVC Isolator?
A cast-in-place aluminum stair nosing with PVC Isolator is a product assembly designed to protect against galvanic corrosion between the aluminum nose and concrete. The PVC isolator embeds directly into freshly poured concrete. The aluminum nose is replaceable. Ideal for precast stairs, precast treads, or cast-in-place stairs. The nosing adds slip resistance, visibility, and long-term wear protection to commercial stairways.
What is the purpose of the removable protective construction cover on your stair nosings?
Our stair nosings include a removable protective construction cover designed to shield the nosing surface during stair fabrication, concrete pours, and construction traffic. This cover helps prevent damage to the visible strip and aluminum finish, ensuring the nosing looks clean and professional upon project completion. Once construction is finished, the cover peels off easily, revealing a like-new surface ready for occupancy.
Are your stair nosings compliant with ADA and IBC codes?
Yes, our cast-in-place stair nosings are manufactured to meet or exceed the International Building Code (IBC) and ADA (Americans with Disabilities Act) guidelines for stair safety. We offer options with contrasting visual strips and slip-resistant surfaces to help meet these requirements.
Can your stair nosings be used on precast concrete stairs?
Absolutely. Our embedded 2-inch stair nosings with PVC isolator for galvanic corrosion protection are specifically designed for precast stair treads. They are also commonly used on precast stairs and cast-in-place stairs. For pan filled stairs, use our stair nsoing model STNP or STNC-3.
